Diesel Air Heater Autoterm 2D-HA(TR) Truck Kit


Diesel Air Heater Autoterm 2D-HA(TR) Truck Kit comes with the analog or digital controller,  basic installation kit and Operational Manual. The heater is equipped with a self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft.
There are two modifications: 12 V and 24 V.
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers and vans.

Download AUTOTERM 2D brochure

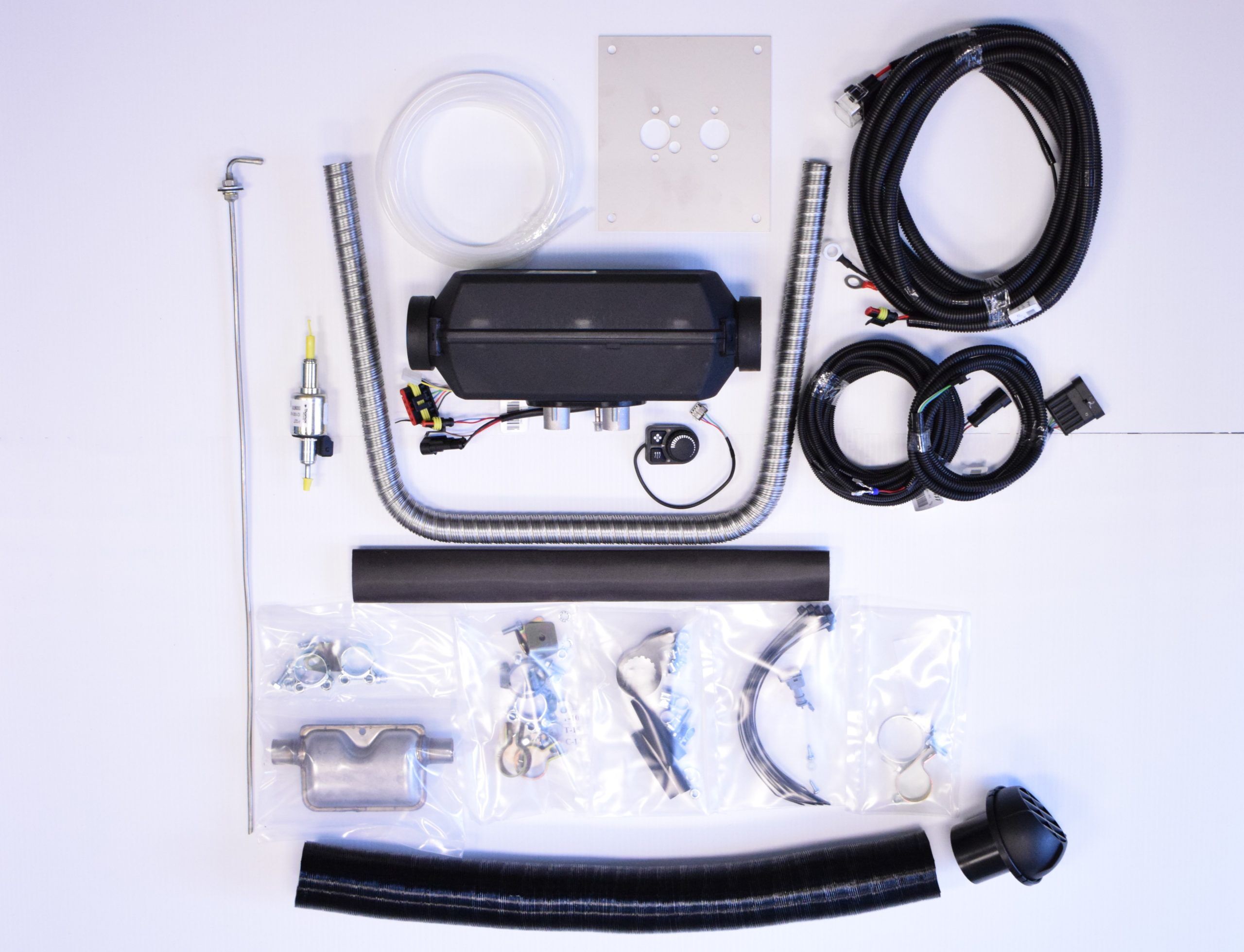

Standard Kit contents:

Product Contains
Autoterm 2D – Diesel Air Heater 1
Inline Metering Fuel Pump 1
Fuel Line, M 5.5
Fuel Pick-UP Stand Pipe 1
Stainless Steel Flexible Exhaust, FT. 3
Exhaust Clamp 1
Combustion Air Intake Hose, FT. 2
Remote Wired Controller 1
Fuel Pump El. Cable, 6 M. 1
Power Cable with Fuses 1
Set of Fasteners & Brackets 1

Extended Kit:

Product Contains

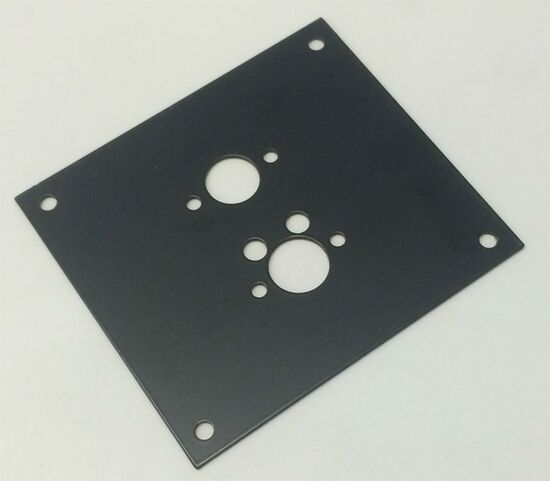

Mountaing Plate; item# PM-002 1

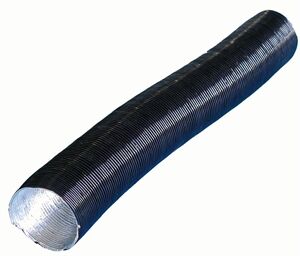

High Temperature Air Hose; PDH60-001 2 ft.

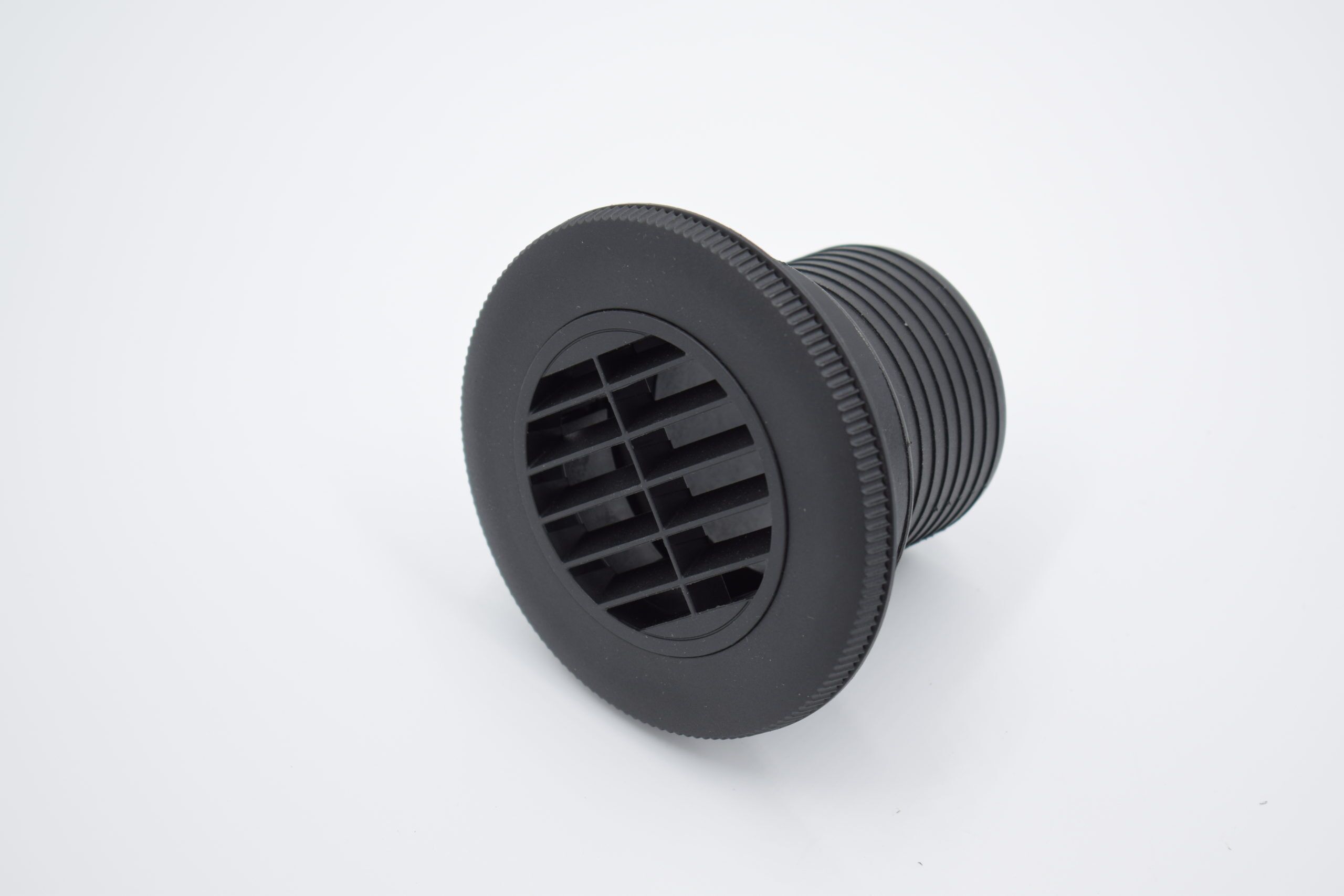

High temperature air vent; PDH-014 1

Technical details:

Heat Output; kW (BTU): 0.8 – 2.0 (2.700-6,850)
Fuel Consumption; l/h (gal/h): 0.10-0.24 (0.03-0.06)
Nominal Supply Voltage; V: 12 or 24
Power Consumption; W (A): 10-29 (0.8-2.42)
Airflow Rate; m3/h: 34-75
Weight; kg: 7.0
 L x D x H; mm:  324 x 118 x 119
 Operating Modes:  Manual / Automatic

Additional information

Weight 8.0 kg
Dimensions 46.5 × 39.5 × 33.5 cm

12 V, 24 V


PU-5, PU-27, PU-28

Manual and Certificates

Operation Manual (English)

Download Installation Manual Planar-EN V06.2021

Download Repair Manual Planar-EN-V11.2017

Download Spare Parts and BOM Planar 2D-EN 2D V10.2021

Operation Manual for Control Panel PU-5

Operation Manual for Control Panel PU-27

Operation Manual for Control Panel PU-28

Mode d’emploi (Français)

Télécharger Manuel de reparation Planar-FR-v11.2017

Installation Manual Planar-FR-v06.2021

Panneau de commande PU-5 Manuel d’utilisation

Manuel d’utilisation Panneau de commande PU-27


Download Planar 2D_R10 Certificate

Download PV_R122_ADVERS_PLANAR-2D_18-03935

Certificats (Français)

Télécharger FR-14159-02

Field test on planar 2kw diesel heater (camping)
