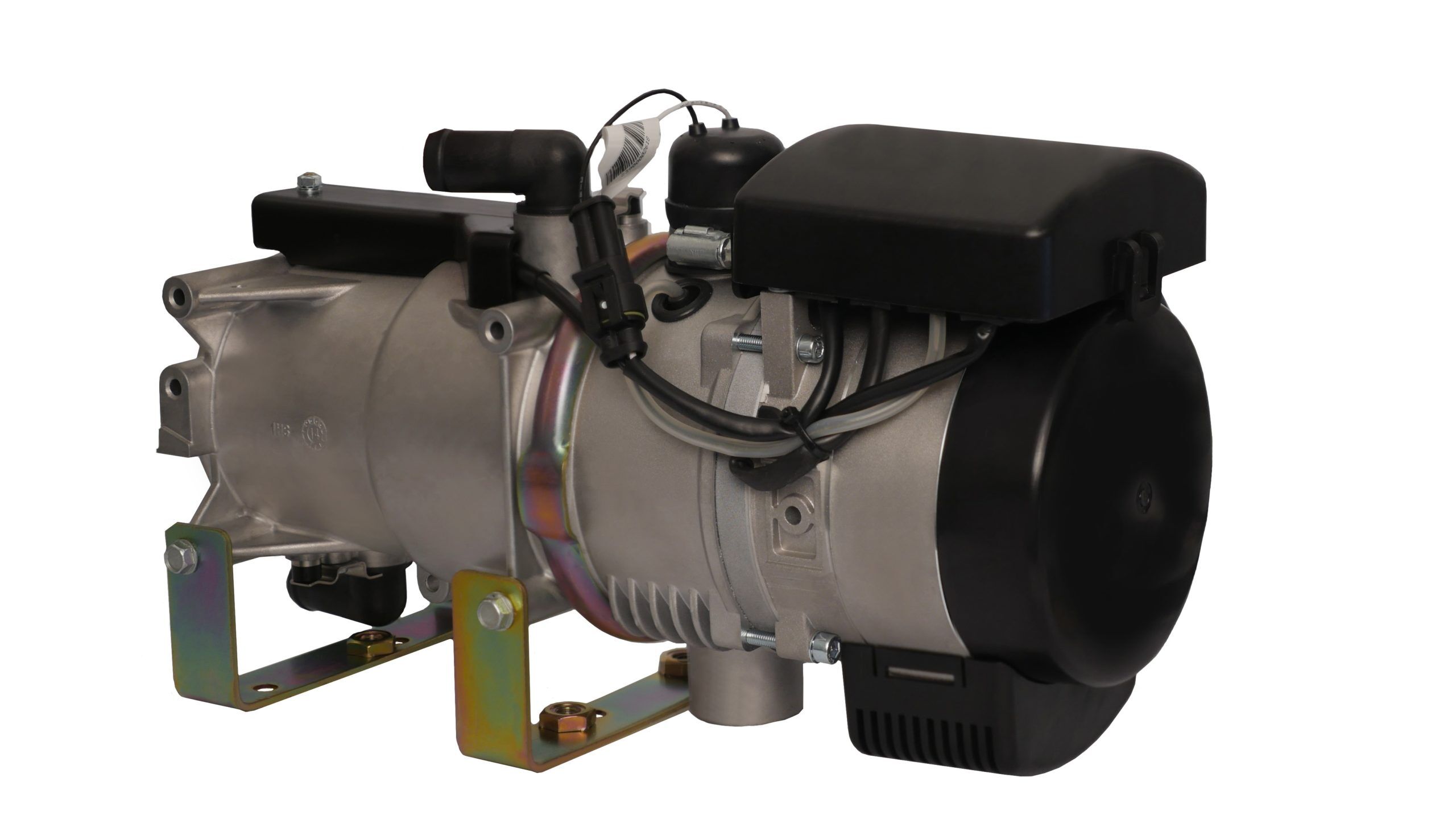

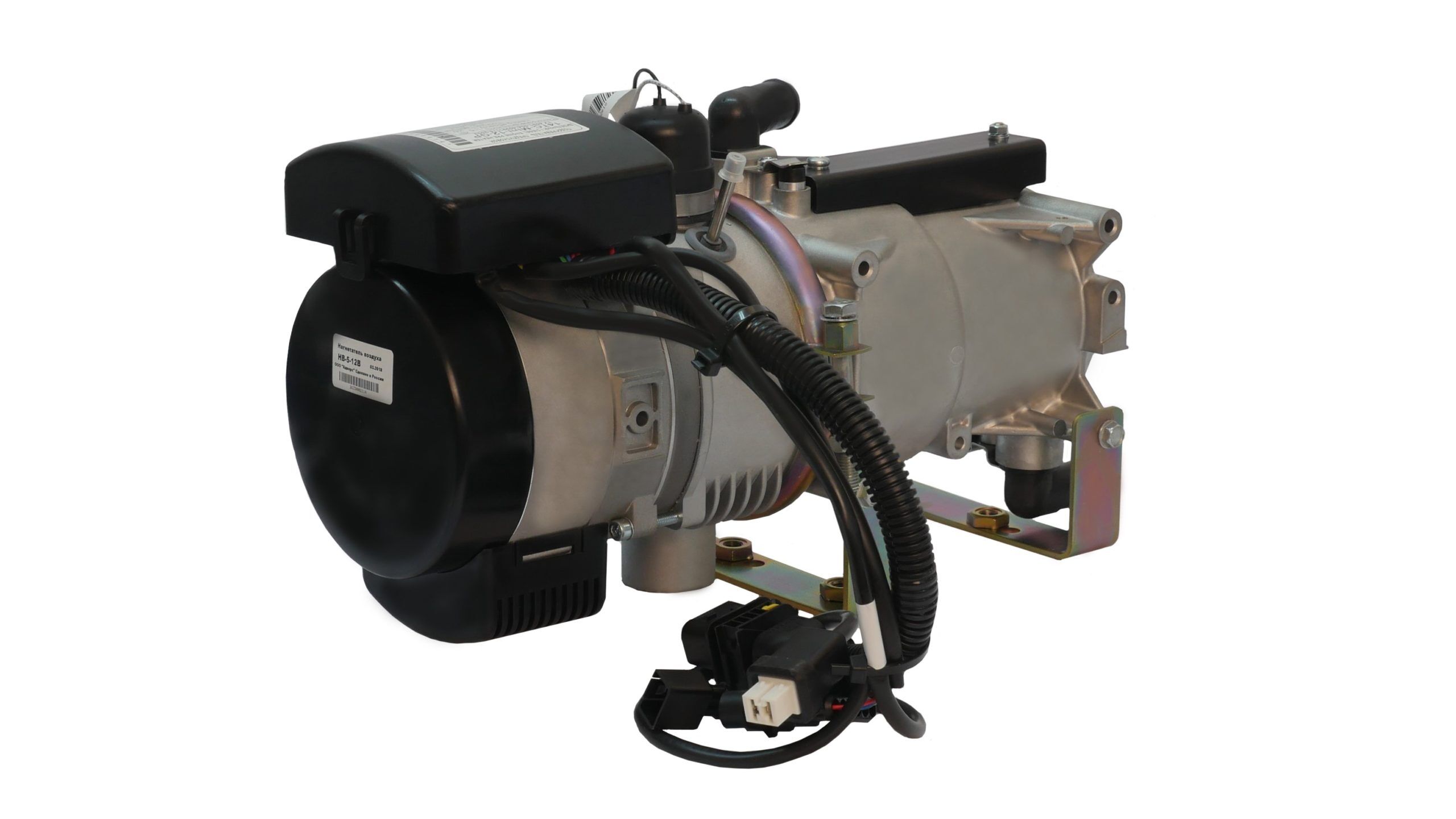

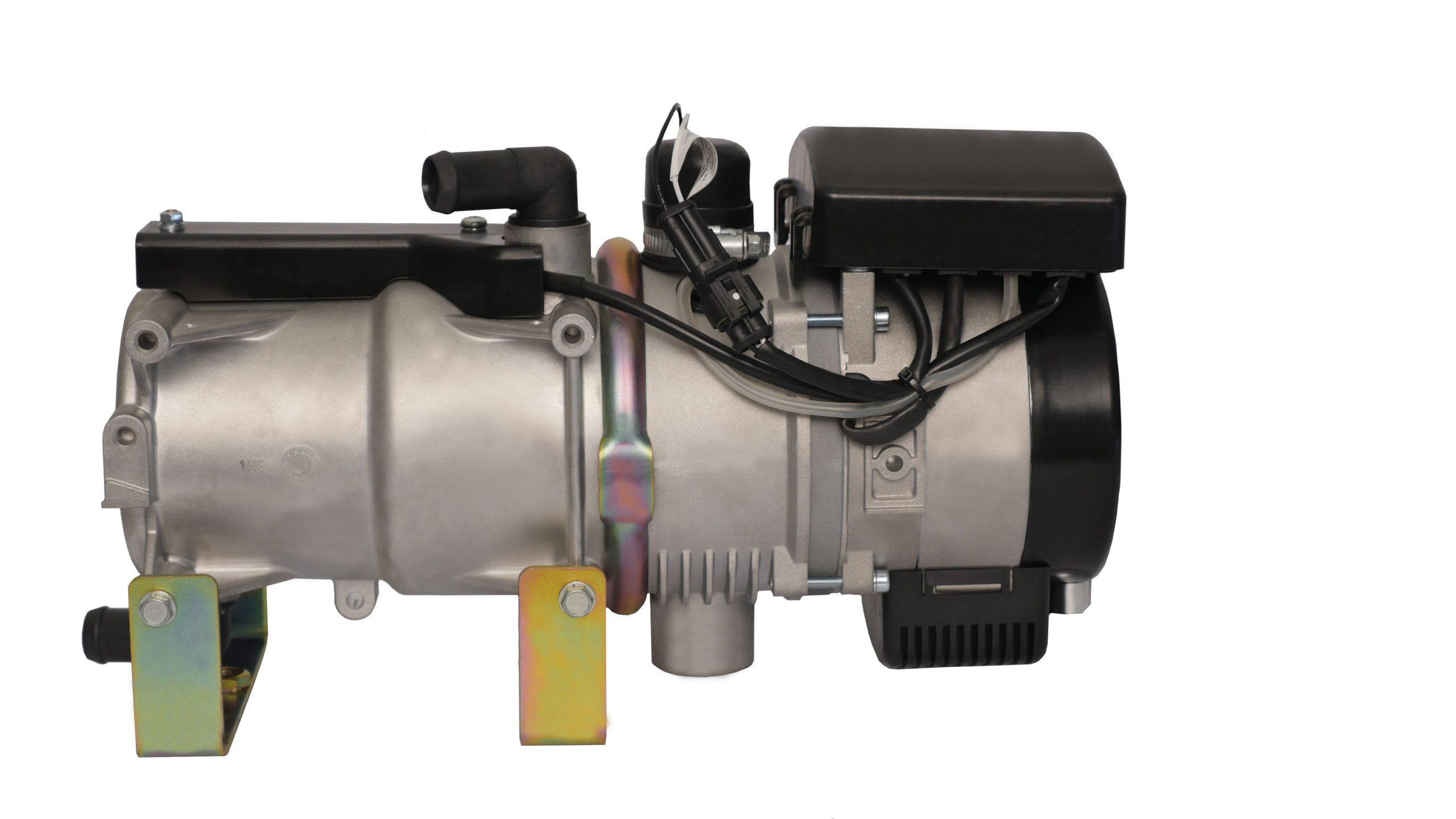

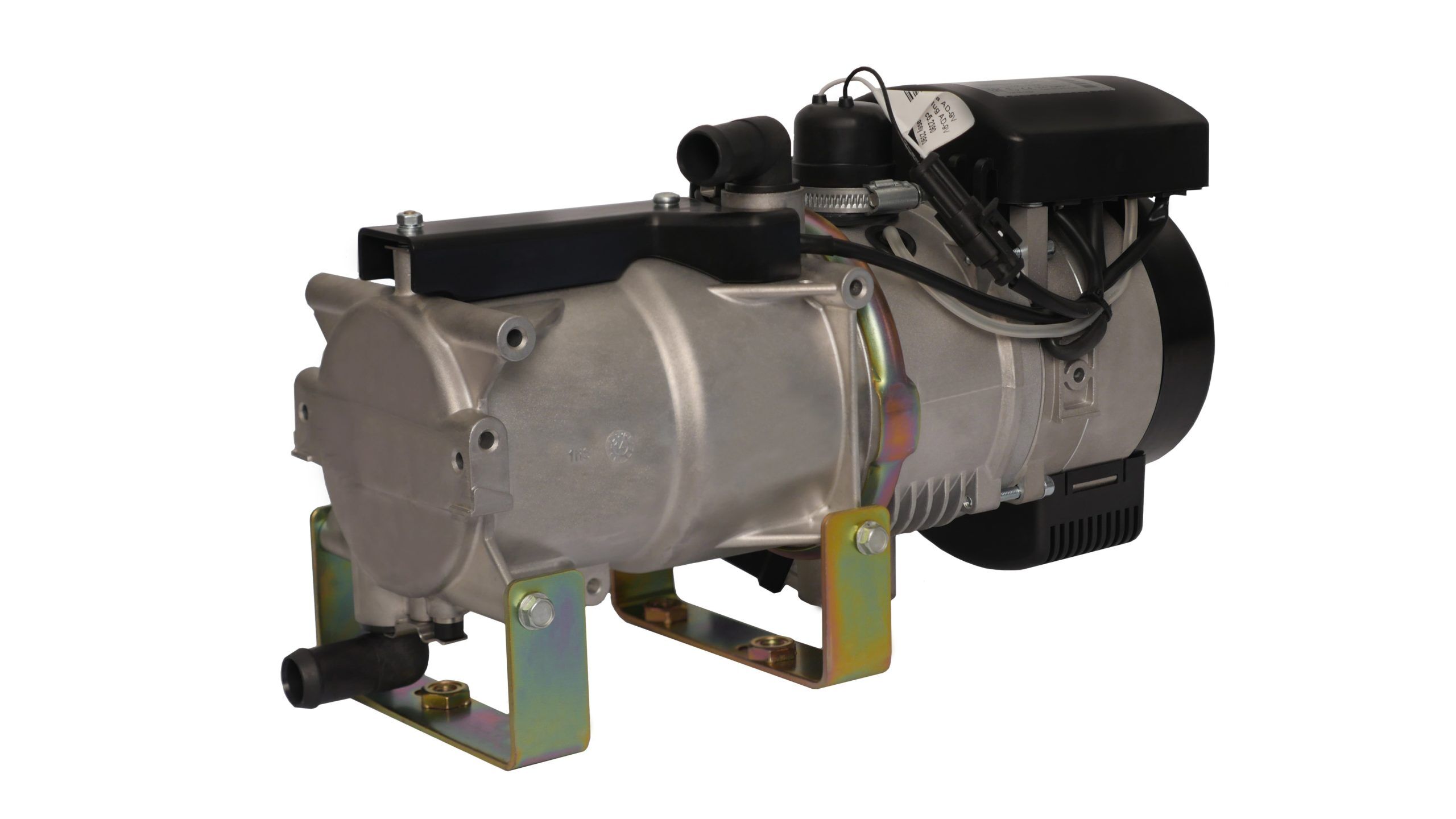

Hydronic Heater Autoterm Flow 14D-12 (-24)



Hydronic Heater Autoterm Flow 14D can be installed in commercial trucks, boats up to 50′, heavy equipment and school buses.

Pre-start engine coolant heaters work independently from the engine. They heat up the engine coolant to provide an easy start at low temperatures. At the same time, they can supply hot air to the passenger cabin/compartment keeping it warm and dry.

Hydronic Heater Autoterm Flow 14D comes with a programmable controller PU-27 or PU-28 with timers and automatic temperature control.

There are two modifications available: 12 V and 24 V

Download 14D-PU27 brochure


Technical details:

12 V 24 V
Heat Output; kW (BTU): 4.0-14.5(13,600-49,500) 4.0-14.5 (13,600-49,500)
Fuel: Diesel Diesel
Fuel Consumption; l/h (gal/h): 0.5-1.9 (0.13-0.5) 0.5-1.9 (0.13-0.5)
Nominal Supply Voltage; V: 12 24
Power Consumption; W (A): 74-110 (6.1-9.1) 76-130 (3.1-5.4)
Coolant: Antifreeze Antifreeze
Weight; KG: 14.5 14.5

Additional information

Weight 16.0 kg
Dimensions 59 × 37 × 35 cm

12V, 24V


PU-27, PU-28

Manual and Certificates

Operation Manual (English)

Download Operation Manual 14TC-EN V12.2016

Download Repair Manual 14TC-EN-V12.2016

Download Spare Parts and 14TC-EN-V06.2020

Operation Manual for Control Panel PU-27

Operation Manual for Control Panel PU-28

Mode d’emploi (Français)

Manuel d’utilisation Panneau de commande PU-27


Download 14 TC Mini Certificate EEK10

Download FG R122 14094-01-00 ADVERS 14YYY

Download PV R122 19-00374 ADVERS 14YYYY
