Diesel Air Heater Planar/Autoterm 2D-HA

$888.00$940.00

Diesel Air Heater Planar/Autoterm 2D-HA comes with the analog or digital controller, basic installation kit and Operational Manual. The heater is equipped with self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft.

There are two modifications: 12 V and 24 V.
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers, vans.

* TEMPORARILY OUT OF STOCK *

Download Planar 2D brochure

Description

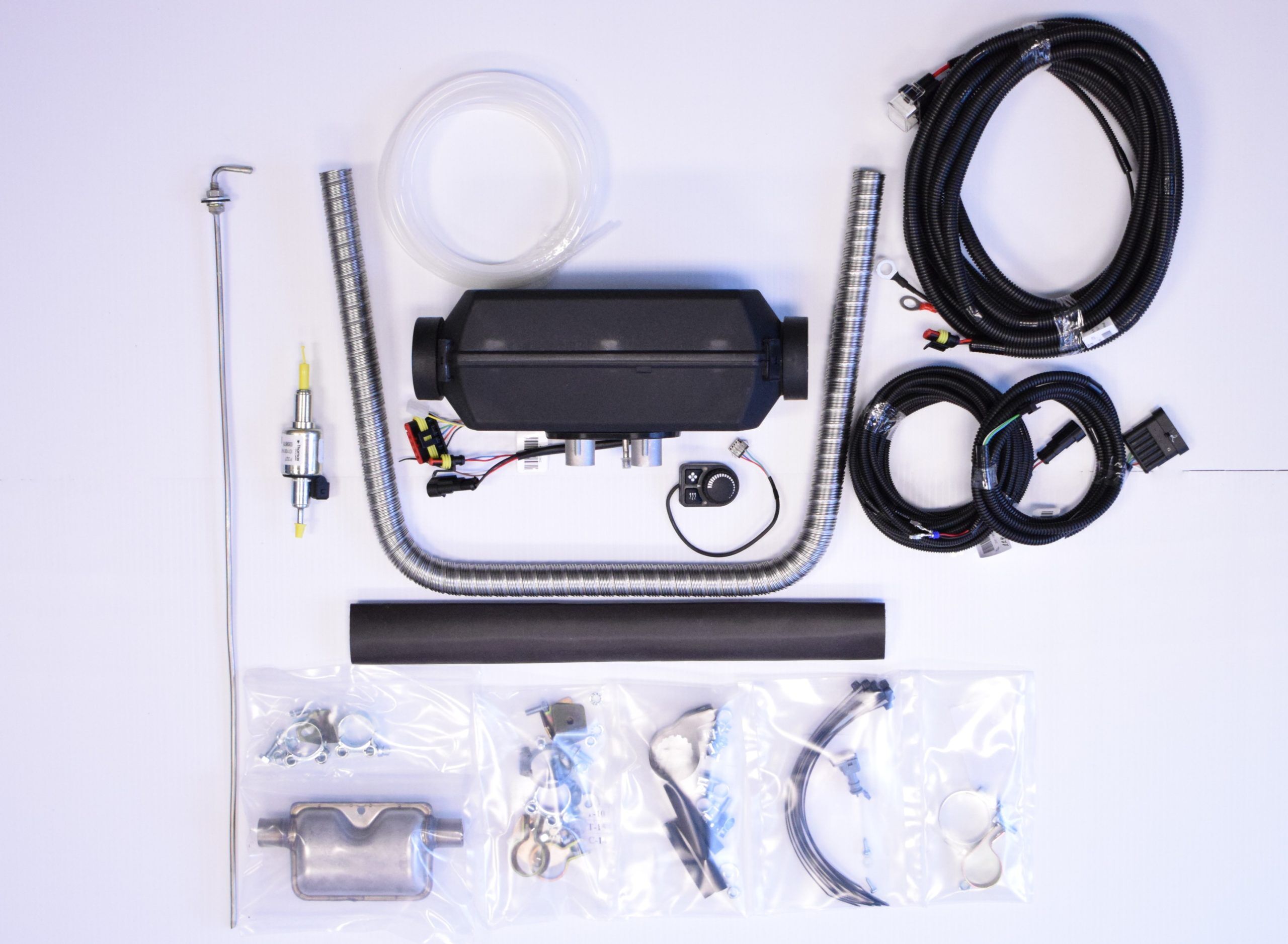

Diesel Air Heater Planar/Autoterm 2D Kit contents:

Product Contains

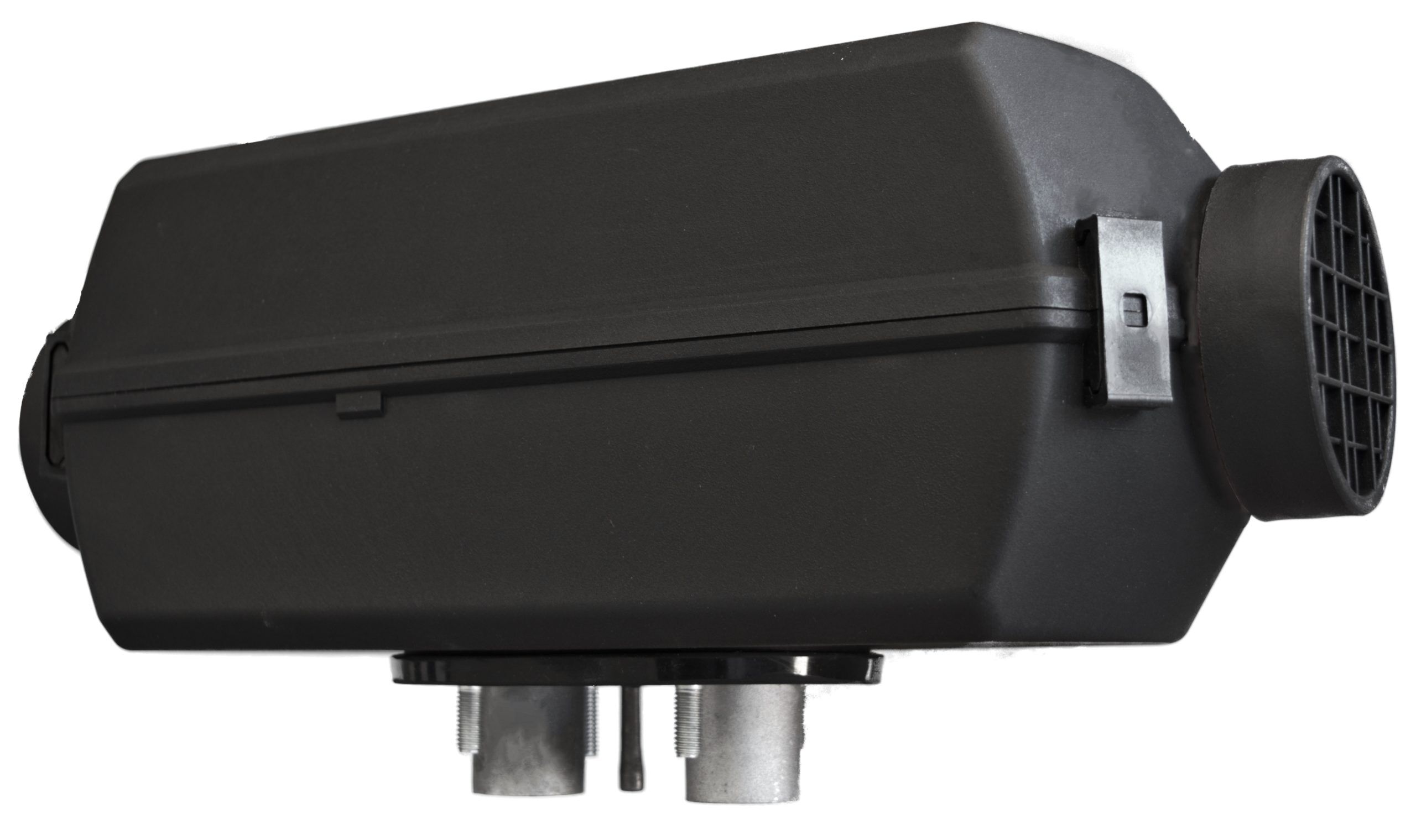

Planar 2D – Diesel Air Heater 1

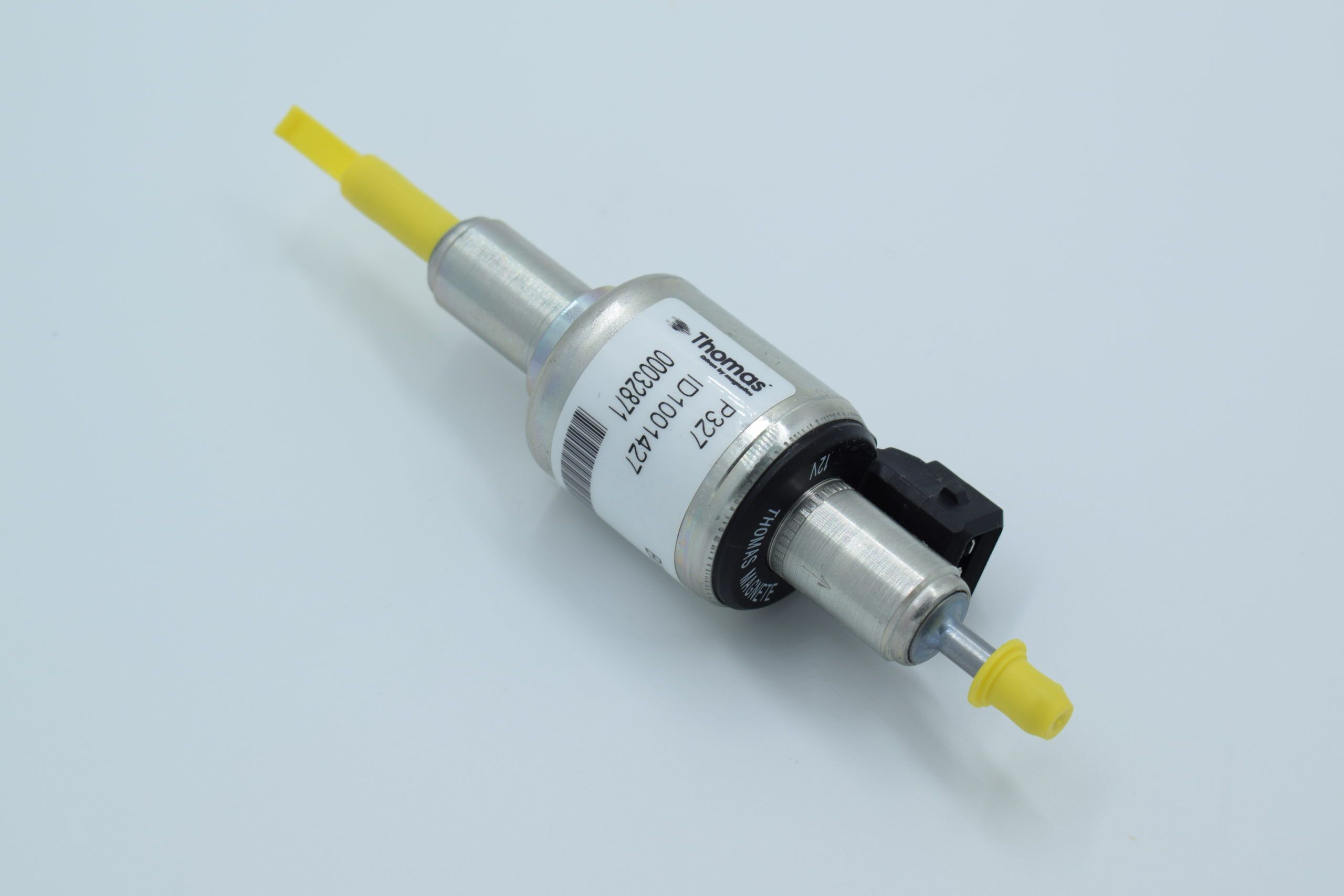

Inline Metering Fuel Pump 1
Fuel Line, M 5.5
Fuel Pick-UP Stand Pipe 1
Stainless Steel Flexible Exhaust, FT. 3
Exhaust Clamp 1
Combustion Air Intake Hose, FT. 2
Remote Wired Controller 1
Fuel Pump El. Cable, 6 M. 1
Power Cable with Fuses 1
Set of Fasteners & Brackets 1

Technical details:

Heat Output; kW (BTU): 0.8 (2.700-6,850)
Fuel Consumption; l/h (gal/h): 0.10-0.24 (0.03-0.06)
Nominal Supply Voltage; V: 12 or 24
Power Consumption; W (A): 10-29 (0.8-2.42)
Airflow Rate; m3/h: 34-75
Weight; kg: 7.0
 L x D x H; mm:  324 x 118 x 119
 Operating Modes:  Manual / Automatic

Weight & Dimensions

Weight 6.5 kg
Dimensions 41 × 36 × 17 cm
Voltage

12V, 24V

Controller

PU-5, PU-27, PU-28

Manual and Certificates

Operation Manual (English)

Download Installation Manual Planar-EN V06.2021

Download Repair Manual Planar-EN-V11.2017

Download Spare Parts and BOM Planar 2D-EN 2D V10.2021

Mode d’emploi (Français)

Télécharger Manuel de reparation Planar-FR-v11.2017

Installation Manual Planar-FR-v06.2021

Certificates

Download Planar 2D_R10 Certificate

Download PV_R122_ADVERS_PLANAR-2D_18-03935

Certificats (Français)

Télécharger FR-14159-02

Field test on planar 2kw diesel heater (camping)
