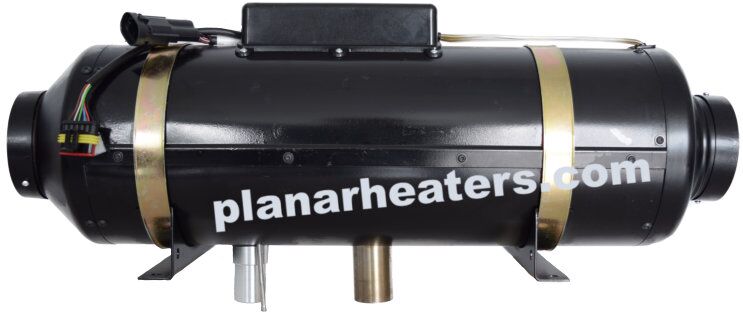

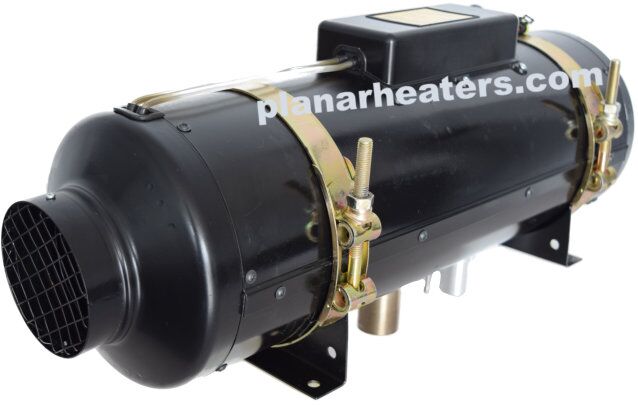

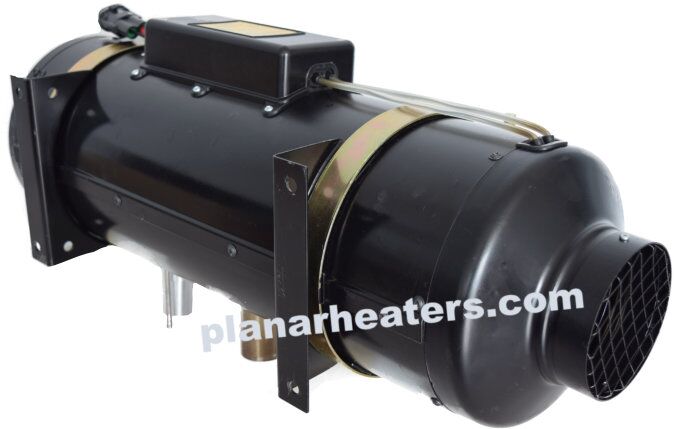

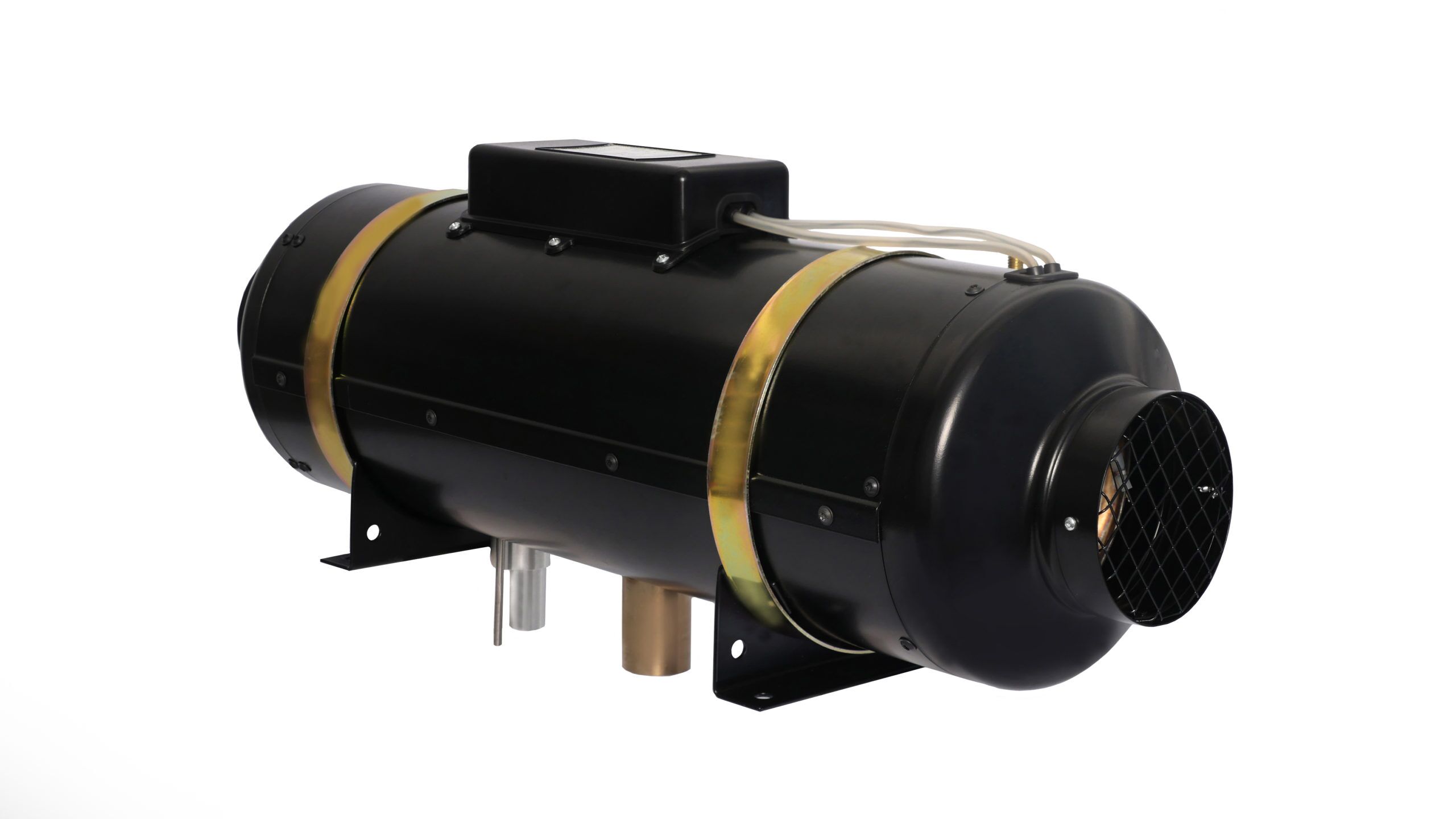

Diesel Air Heater Autoterm 9D

Price range: $2,017.00 through $2,214.00

Diesel Air Heater Autoterm Air 9D comes with an analog or digital programmable controller, basic installation kit and Operational Manual. The heater is equipped with a self-adjusting system for operation at high altitudes up to 1600 m / 5200 ft.
There are two modifications: 12 V and 24 V.
Refer to Operation Manual for installation and operation procedures.
*For heating up to 75 ft. boats, vehicle cargo space, buses & motor homes.

* PLEASE NOTE THAT SHIPPING MAY REQUIRE 1-4 BUSINESS DAYS AND IS SEPARATE FROM THE DELIVERY TIME SELECTED DURING CHECKOUT.
THE ESTIMATED DELIVERY DATE REFLECTS THE TRANSIT TIME AFTER YOUR ORDER HAS BEEN SHIPPED *

* NOTICE TO US CUSTOMERS*
The purchases made through this website are subject to the applicable laws, tariffs, duties, and taxes of the US.
Customers
are solely responsible for determining, declaring, and paying any such charges that may apply upon importation of goods into the United States.
We strongly advise customers to verify applicable import requirements with U.S. Customs and Border Protection prior to placing an order.

Download AUTOTERM 9D brochure

Description

Kit contents:

Product Contains
Autoterm 9D-12 / -24 – Diesel Air Heater 1

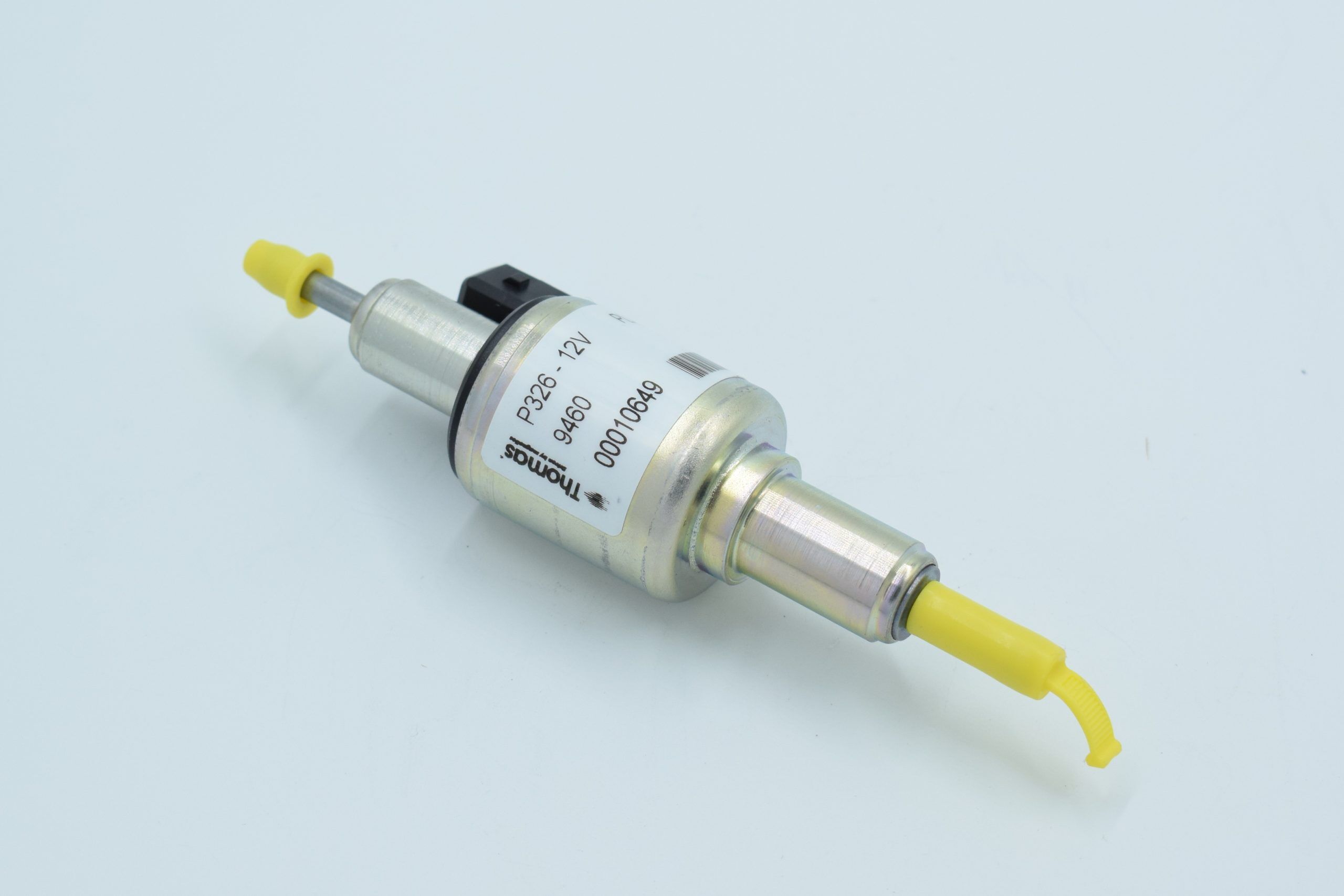

Inline Metering Fuel Pump 1
Fuel Line, M 5.5

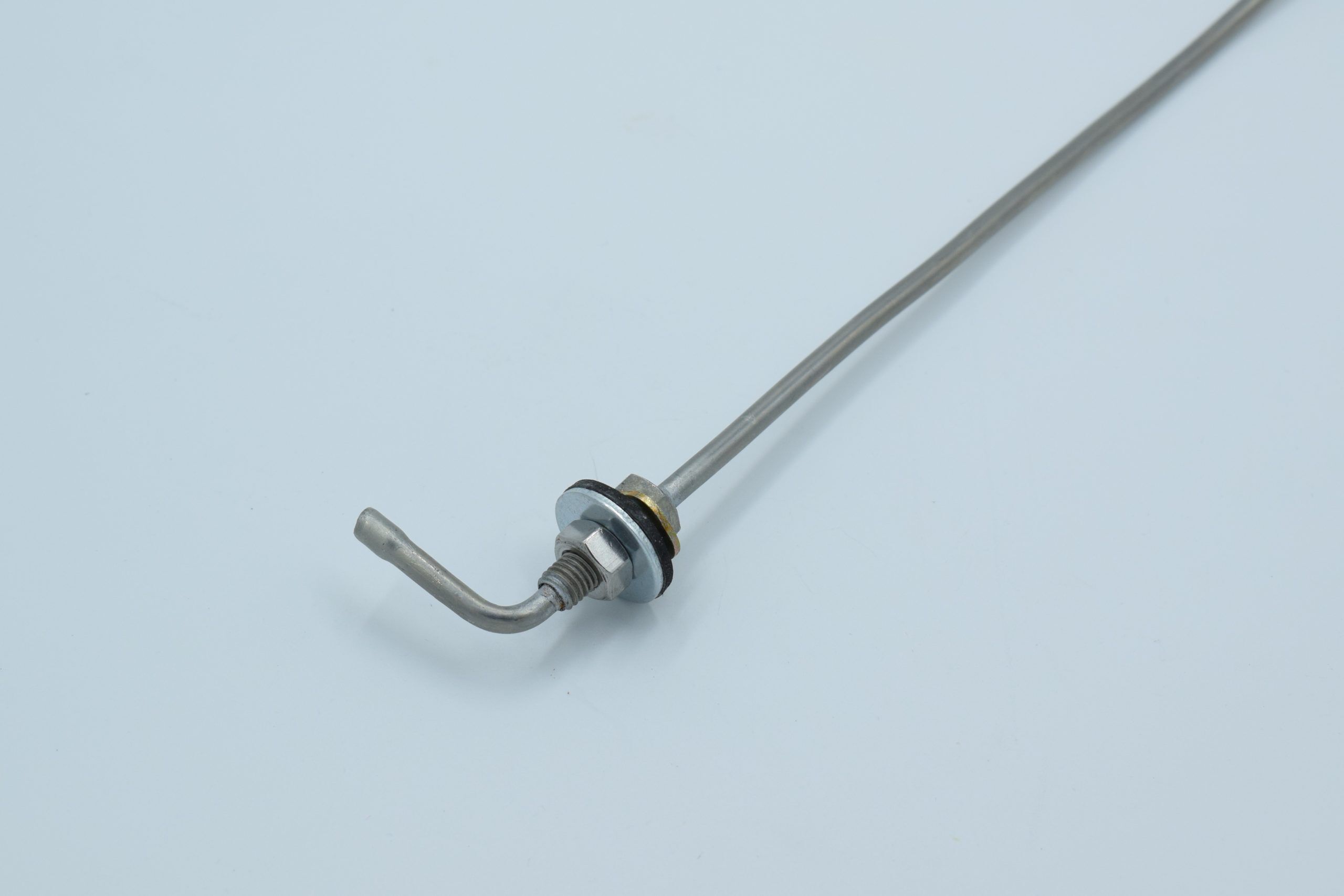

Fuel Pick-UP Stand Pipe 1
Stainless Steel Flexible Exhaust, FT. 2
Exhaust Clamp 1
Remote Wired Controller: digital or dial 1
Fuel Pump El. Cable, 6 M. 1
Power Cable with Fuses 1
Set of Fasteners 1

Technical details:

Parameter Code

Version

AUTOTERM–9D–12

AUTOTERM–9D–24

Nominal Supply
Voltage; V

12

24

Fuel Type

diesel

Heat Output;

kW (BTU)

max

min

max

min

8.0
/ 27,300

3.2
/ 10,900

8.0
/ 27,300

3.2
/ 10,900

Air flow rate;

m³/h (cfm)

max

min

max

min

290
(170)

70
(41)

290
(170)

70
(41)

Fuel consumption;

l/h (gal/h)

max

min

max

min

1.0
(0.26)

0.42
(0.11)

1.0
(0.26)

0.42
(0.11)

Power
consumption,

W (A)

max

min

max

min

215.0
(17.9)

12.0
(1.0)

180.0
(7.5)

12.0
(0.5)

Air temperature
control

manual/automatic

manual/automatic

Weight; kg (lb)

18.0
(39.7)

Click Here To Download Autoterm 9D-12 Blueprint Drawing

Additional information

Weight 19.3 kg
Dimensions 70 × 37 × 35 cm
Voltage

12V, 24V

Controller

PU-5, PU-27, PU-28

Manual and Certificates

Operation Manual (English)

Download Operational Manual Autoterm-EN V06.2023

Download Installation Manual Autoterm-EN-V11.2023

Download Spare Parts and BOM Autoterm 9D EN V04.2023

Operation Manual for Control Panel PU-5

Operation Manual for Control Panel PU-27

Operation Manual for Control Panel PU-28

Mode d’emploi (Français)

Panneau de commande PU-5 Manuel d’utilisation

Manuel d’utilisation Panneau de commande PU-27
