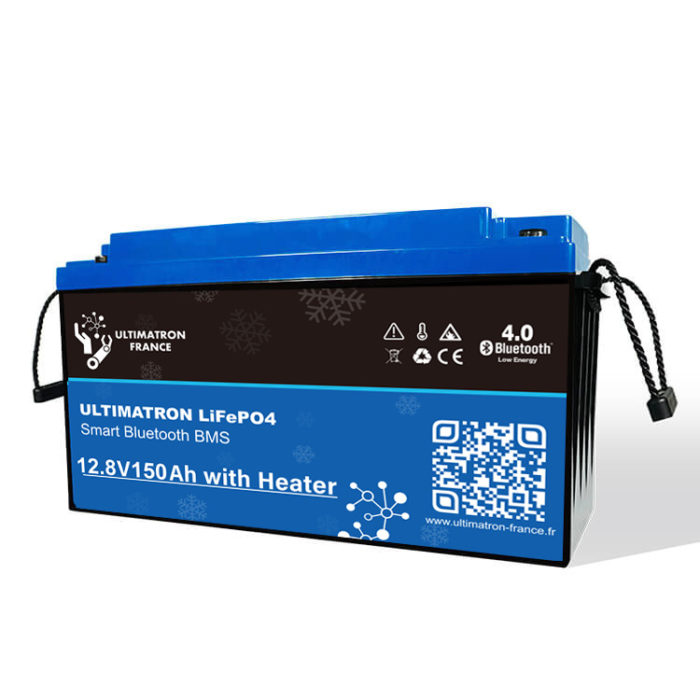

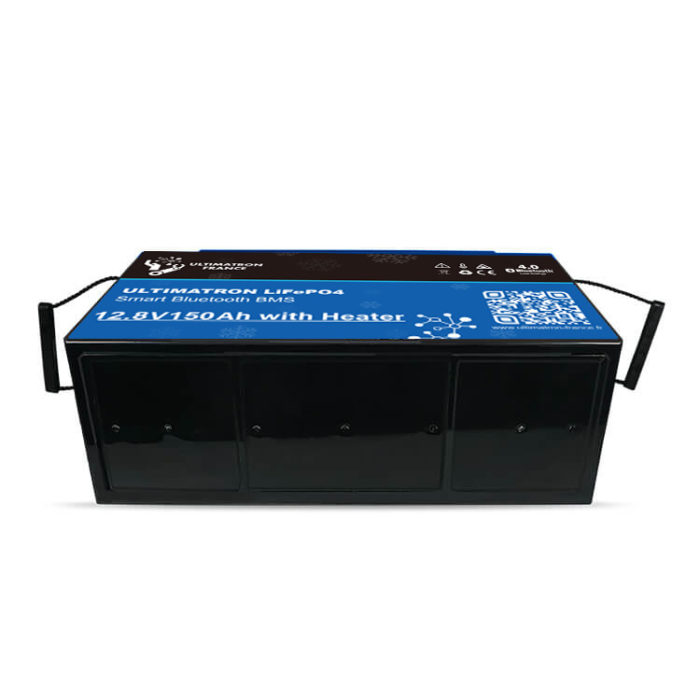

Ultimatron Lithium Battery LifePo4 UBL 12.8V 150Ah With Heater


Out of stock

Compared with traditional batteries, our lithium iron phosphate batteries (LiFePO4) have the following advantages:

Thunder Bolt Icon Blue | Planar Distribution Ltd.5-year manufacturer’s warranty

Thunder Bolt Icon Blue | Planar Distribution Ltd.The safest technology, without risk of fire or explosion Long service life

Thunder Bolt Icon Blue | Planar Distribution Ltd.Constantly improving storage capacity High stability even under extreme loads

Thunder Bolt Icon Blue | Planar Distribution Ltd.No memory effect, no need for a full charge and discharge cycles High performance even under extreme conditions

Thunder Bolt Icon Blue | Planar Distribution Ltd.Deep and regular discharge and charging efficiency Small size and lightweight

Out of stock


ULTIMATRON LiFePO4 Smart BMS 12.8V 150Ah with Heater – Technical Details:

Model UBL-12.8V-150Ah
Nominal Capacity 150Ah / 1920Wh
Operating Voltage Range 10-14.6V
Nominal Voltage 12.8V
Number of Cycles ≥3000 at 80% DoD
Charging Characteristics CCCV / IU
Charging Voltage 14.6V
Recommended Charge Current 20A
Maximum Charge Current 50A
Maximum Discharge Current 150A
Peak Discharge Cut-Off
Current (5~15 ms)
BMS (Battery Management System) Integrated
Monitoring Bluetooth 4.0 with a smartphone app
Application/Interconnection Parallel connection and serial connection with Max. 4 batteries for 12V, 24V, 48V applications
Protection IP65
Temperature Range (Discharge) -20 ~ 60°C
Temperature Range (Charge)* -20 ~ 45°C
Temperature Range (Storage) -5 ~ 35°C
Low Temperature Heating Temperature<0°C, threshold to10°C and start normal charge
Terminal Stud M8
Warranty 5-year manufacturer’s warranty

Additional information

Weight 17.8 kg
Dimensions 48.5 × 17.2 × 24 cm

Product Information

Integrated Battery Management System (BMS)

To allow the control and the charge of the different elements of an accumulator battery and to protect it against overcharging, overvoltages and overheating.

Integrated Battery Management System (BMS) | Ultimatron Lithium Batteries Canada

Integrated Bluetooth 4.0 Monitoring

You have all important battery data always on your smartphone or tablet. The application displays the data in real-time.

Download Ultimatron Lithium Batteries App Online | Planar Distribution

Manual and Certificates

Thunder Bolt Icon Blue | Planar Distribution Ltd.Ultimatron France – Instructions For Use – Operation Manual

Thunder Bolt Icon Blue | Planar Distribution Ltd.Attestation Certificate Of Electromagnetic Compatibility Directive

Thunder Bolt Icon Blue | Planar Distribution Ltd.Certificate Of Compliance
