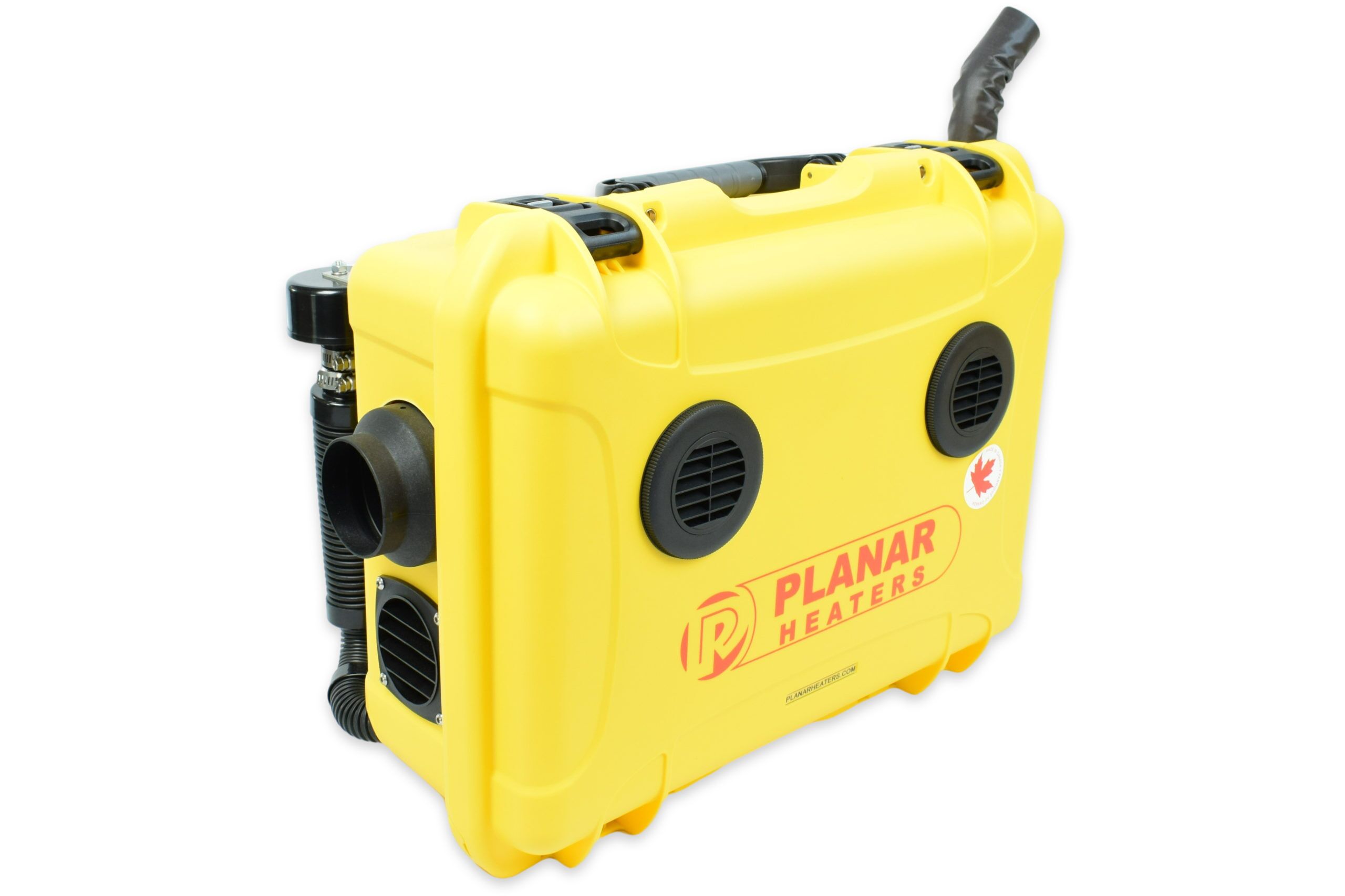

Portable Diesel Air Heater Planar 4D-12V, 4 kw, 12v

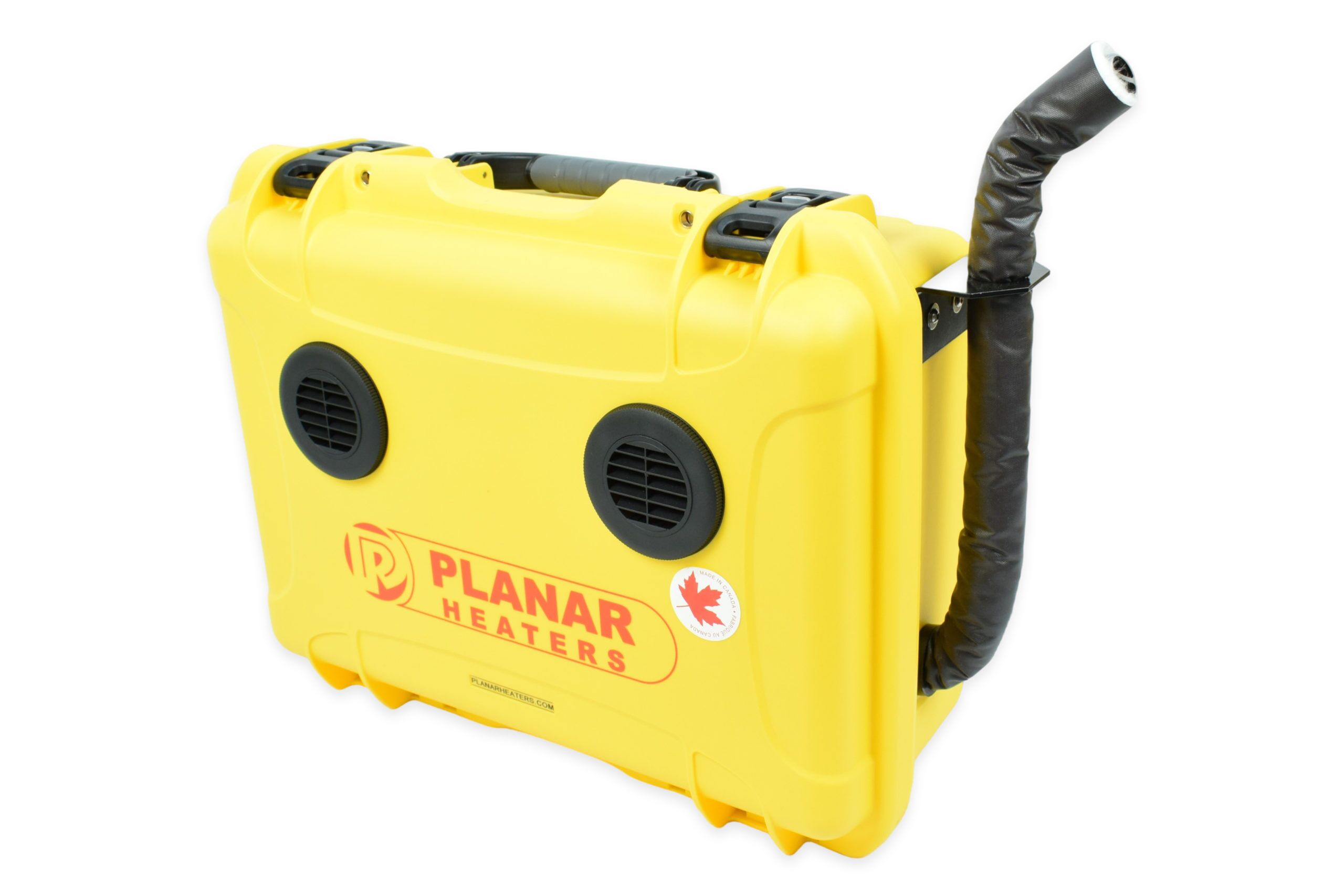

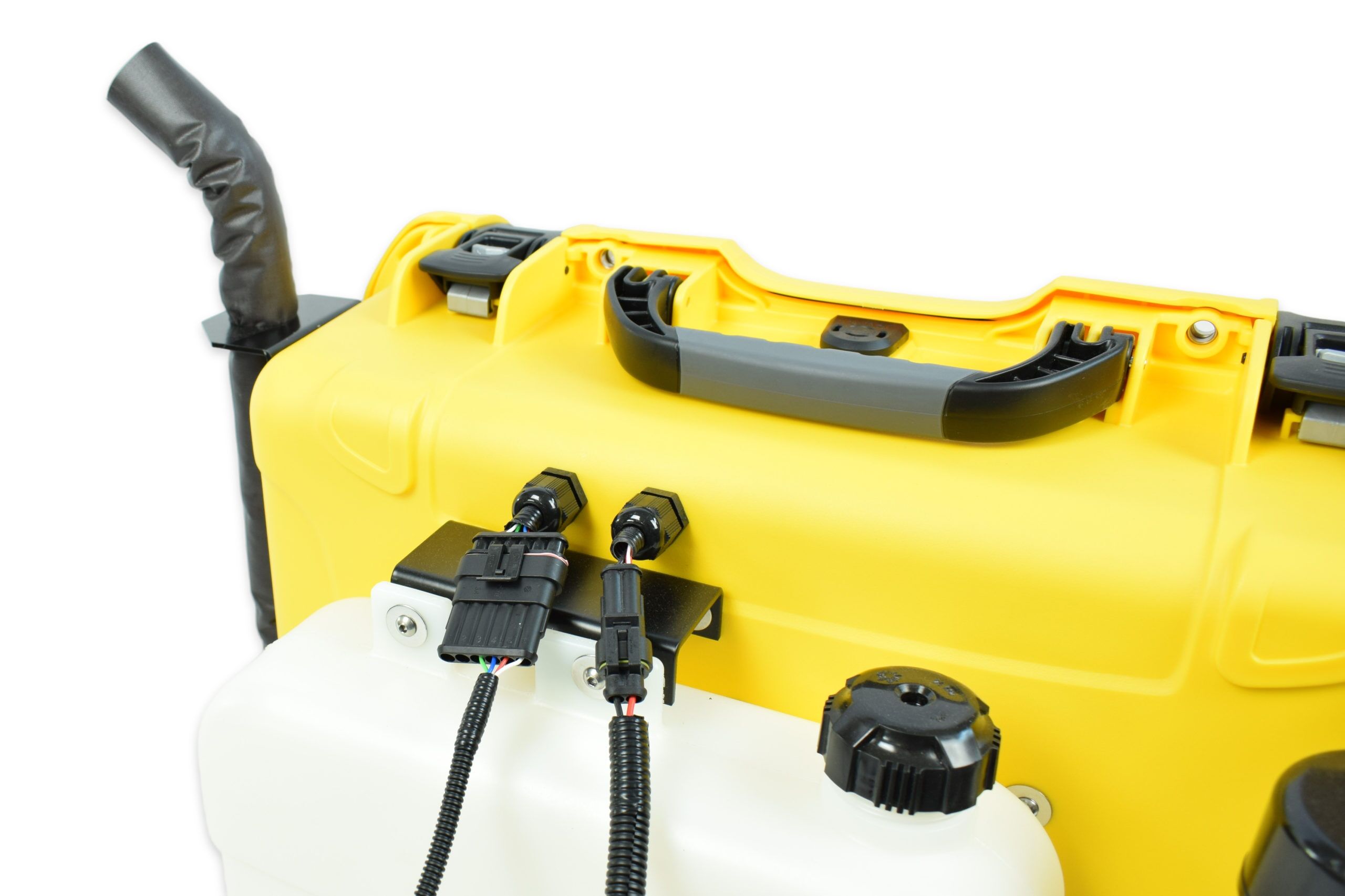

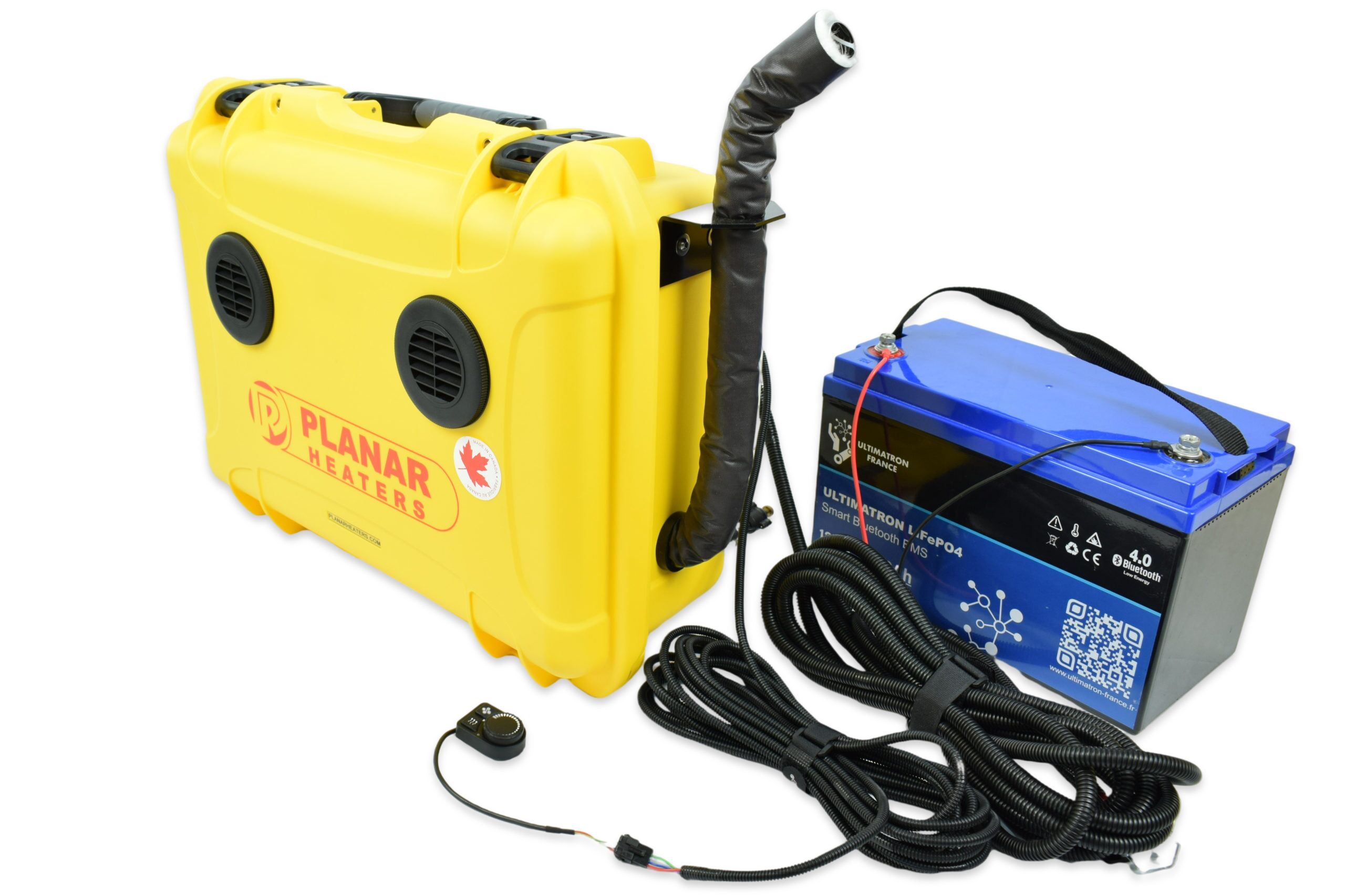

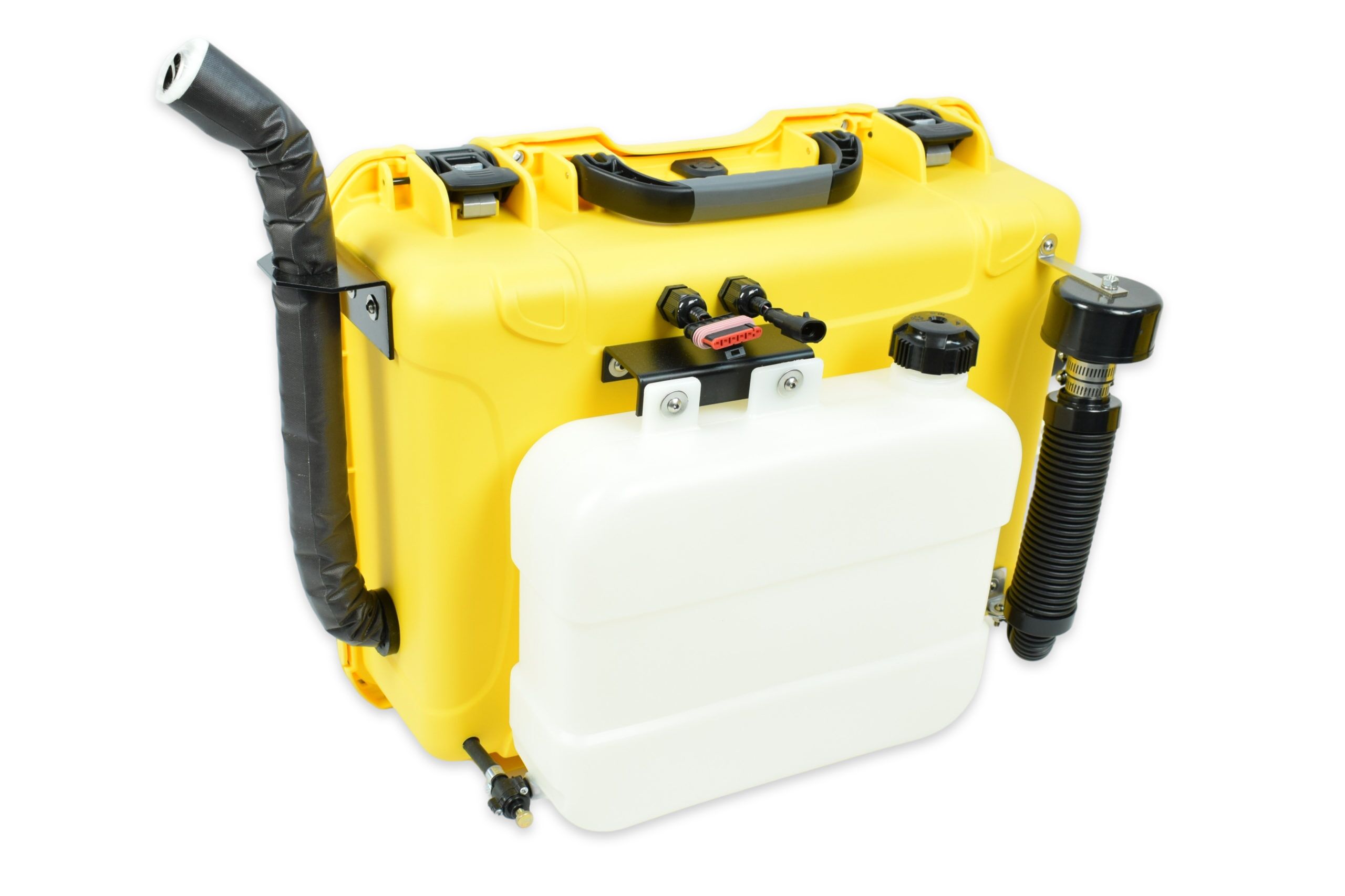

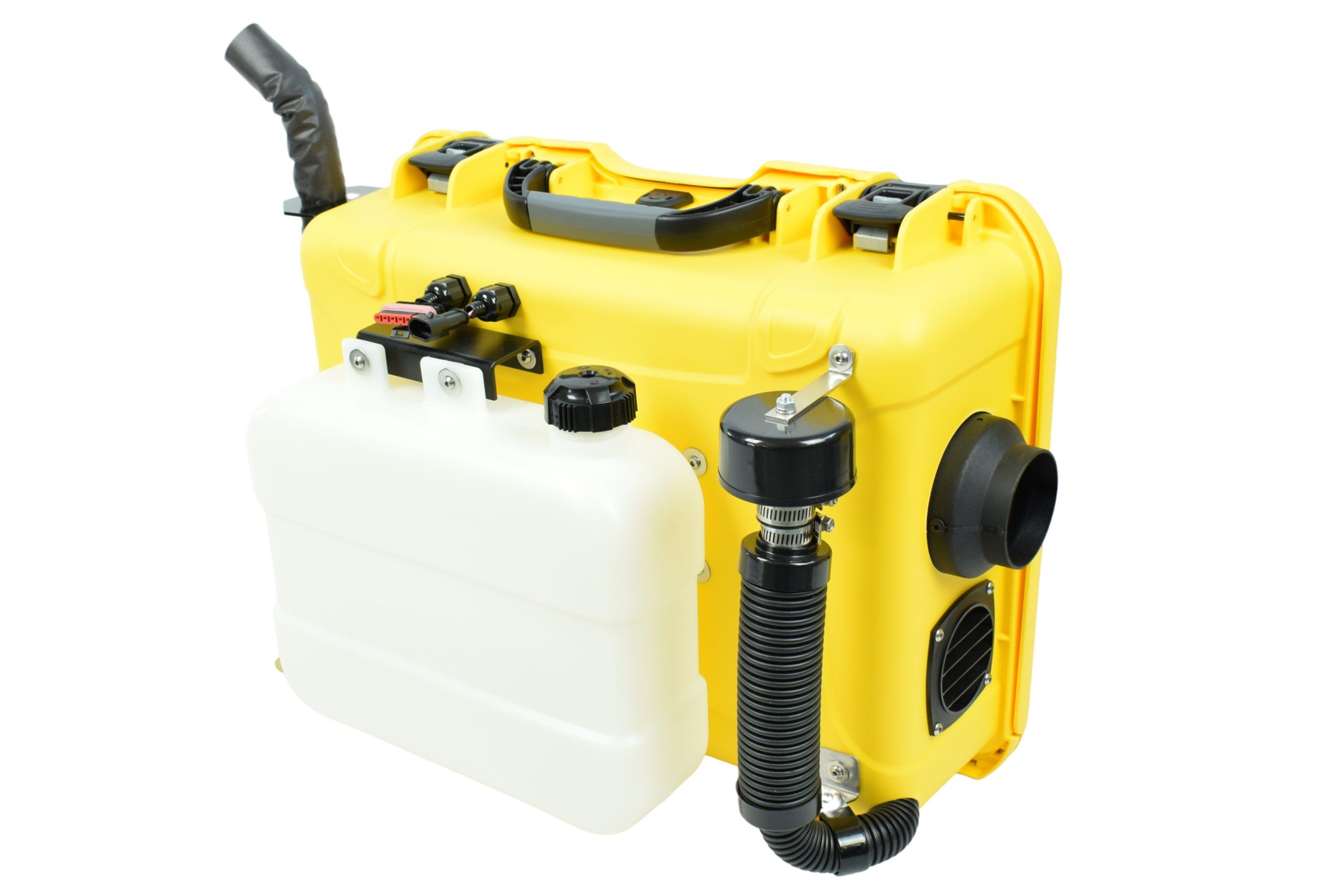

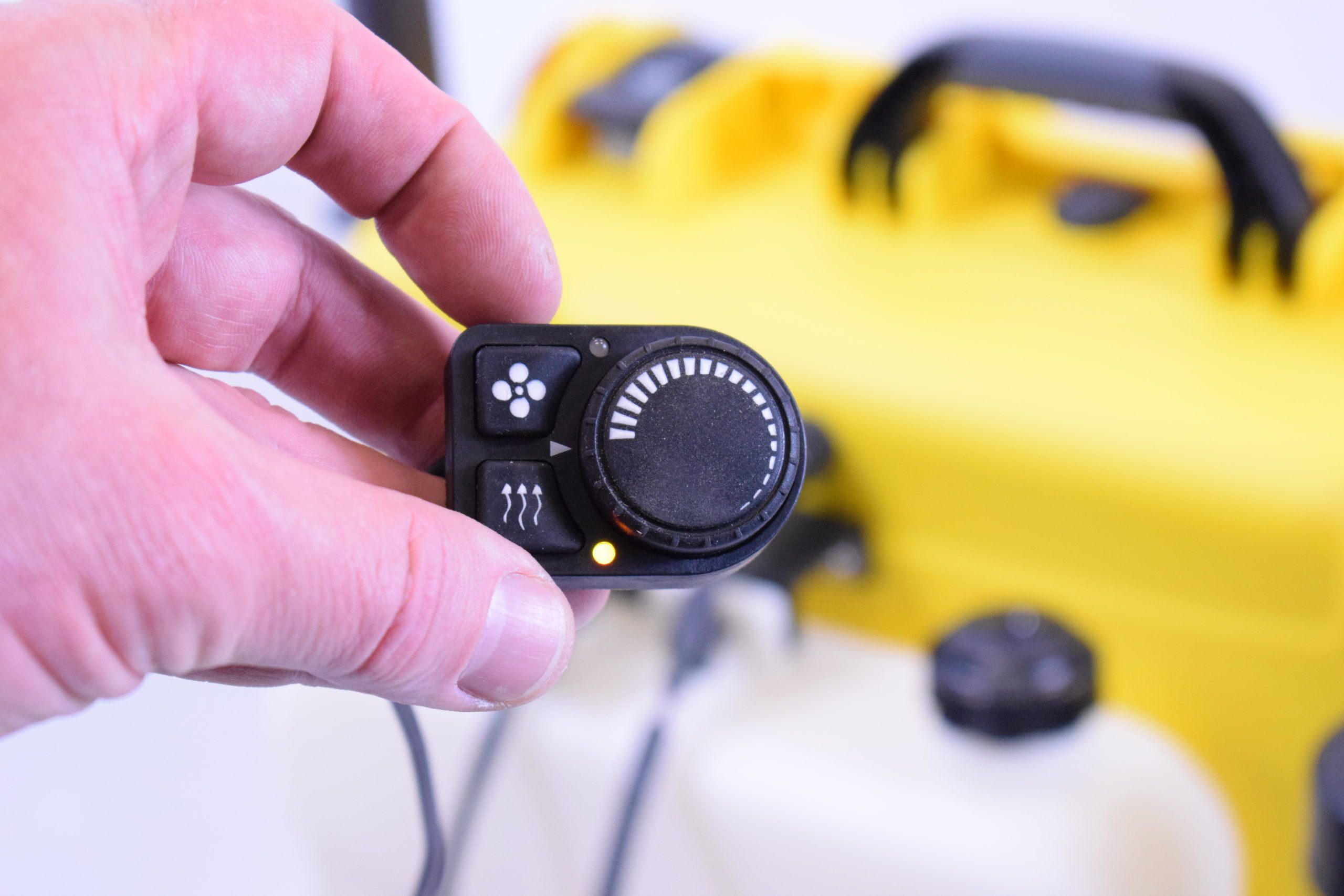

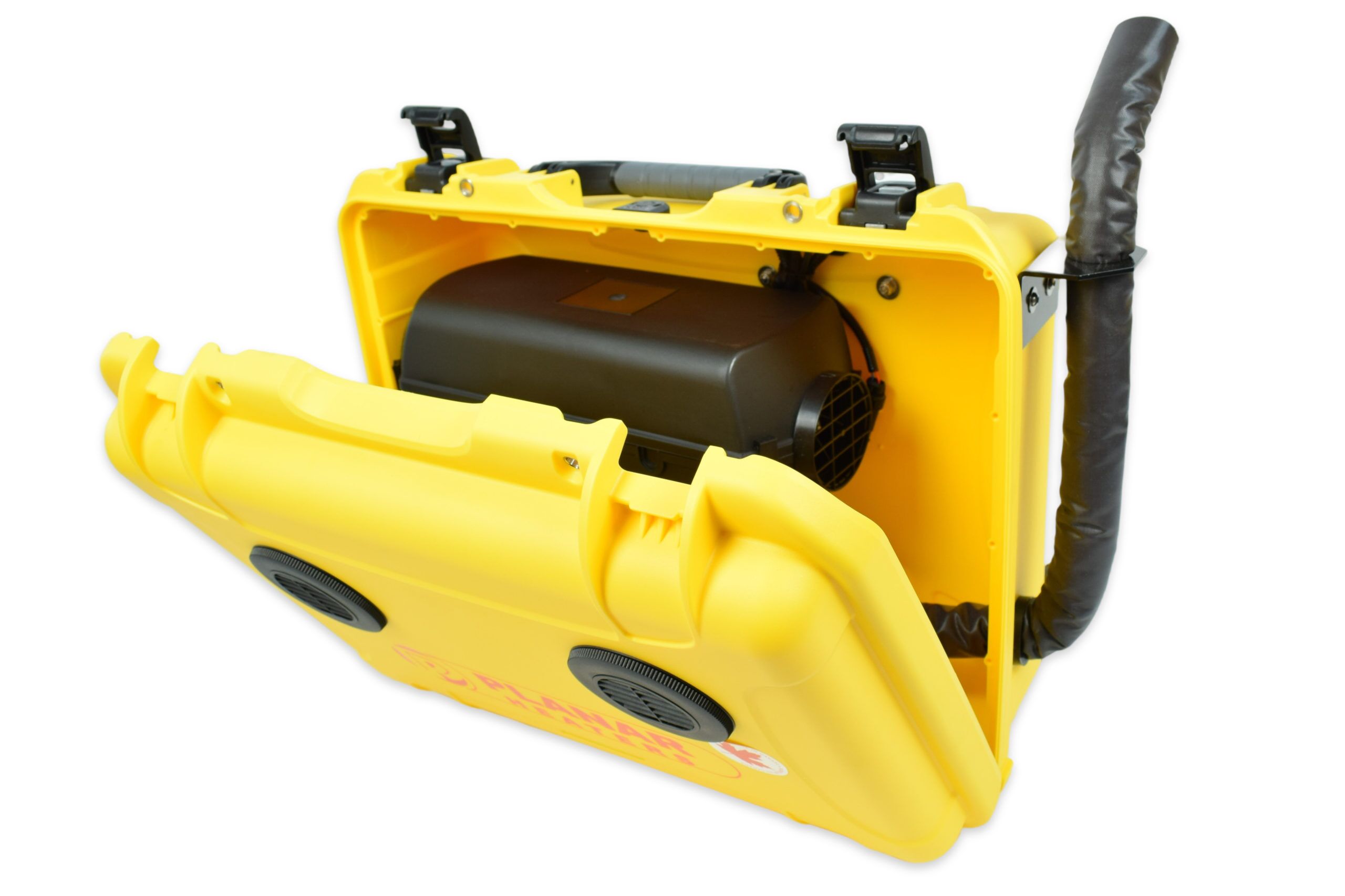

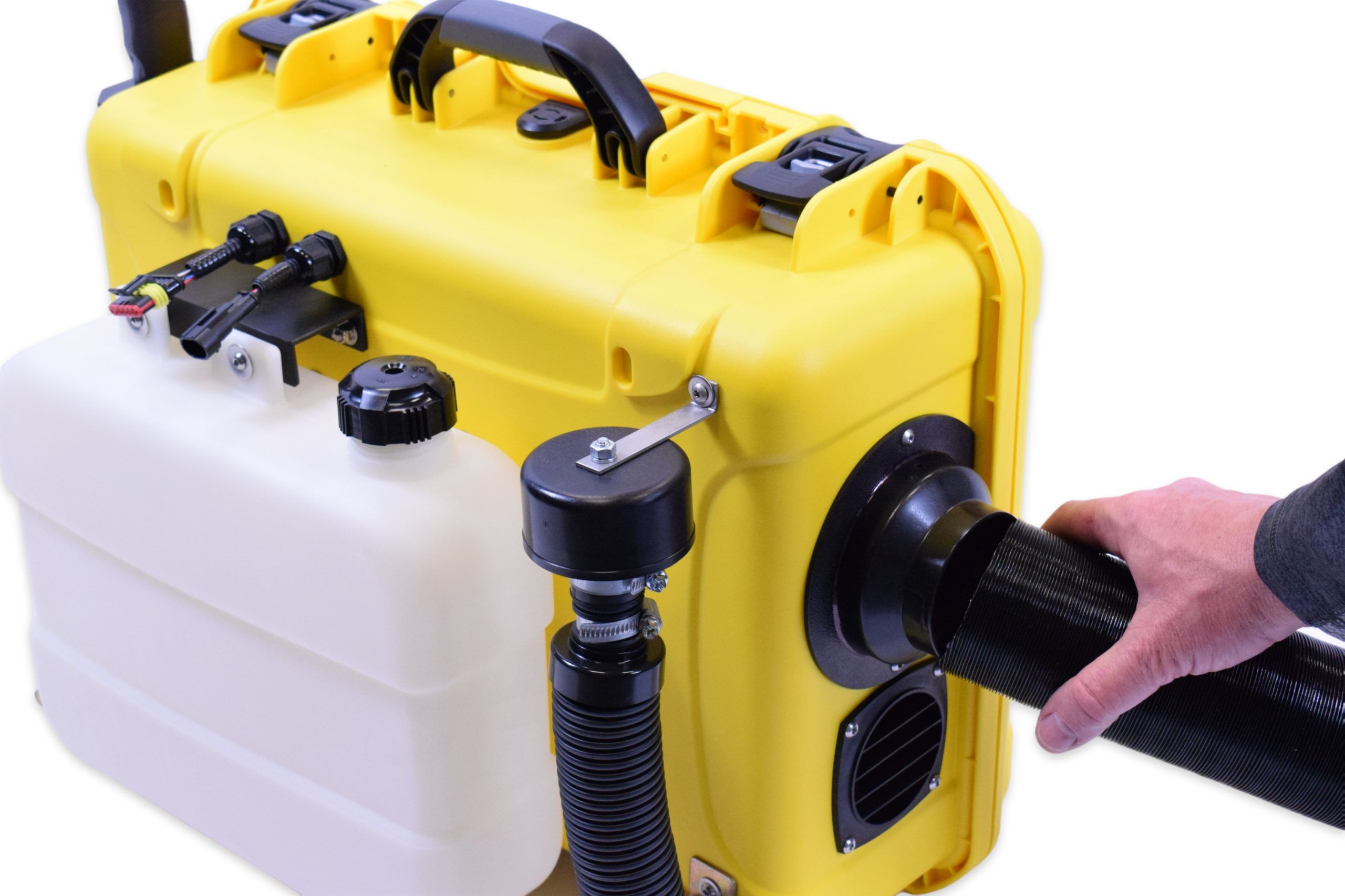

Portable Diesel Air Heater Planar 4D – 12V is a 4 kw self-contained heater that comes in a crushproof rain-resistant case. Runs on diesel or kerosene and 12v DC. Equipped with a silencer, air intake filter, and remote wired controller.
Burns just 3-4 litres of fuel for 8 hours.
Operates at high altitudes up to 8,200 ft.

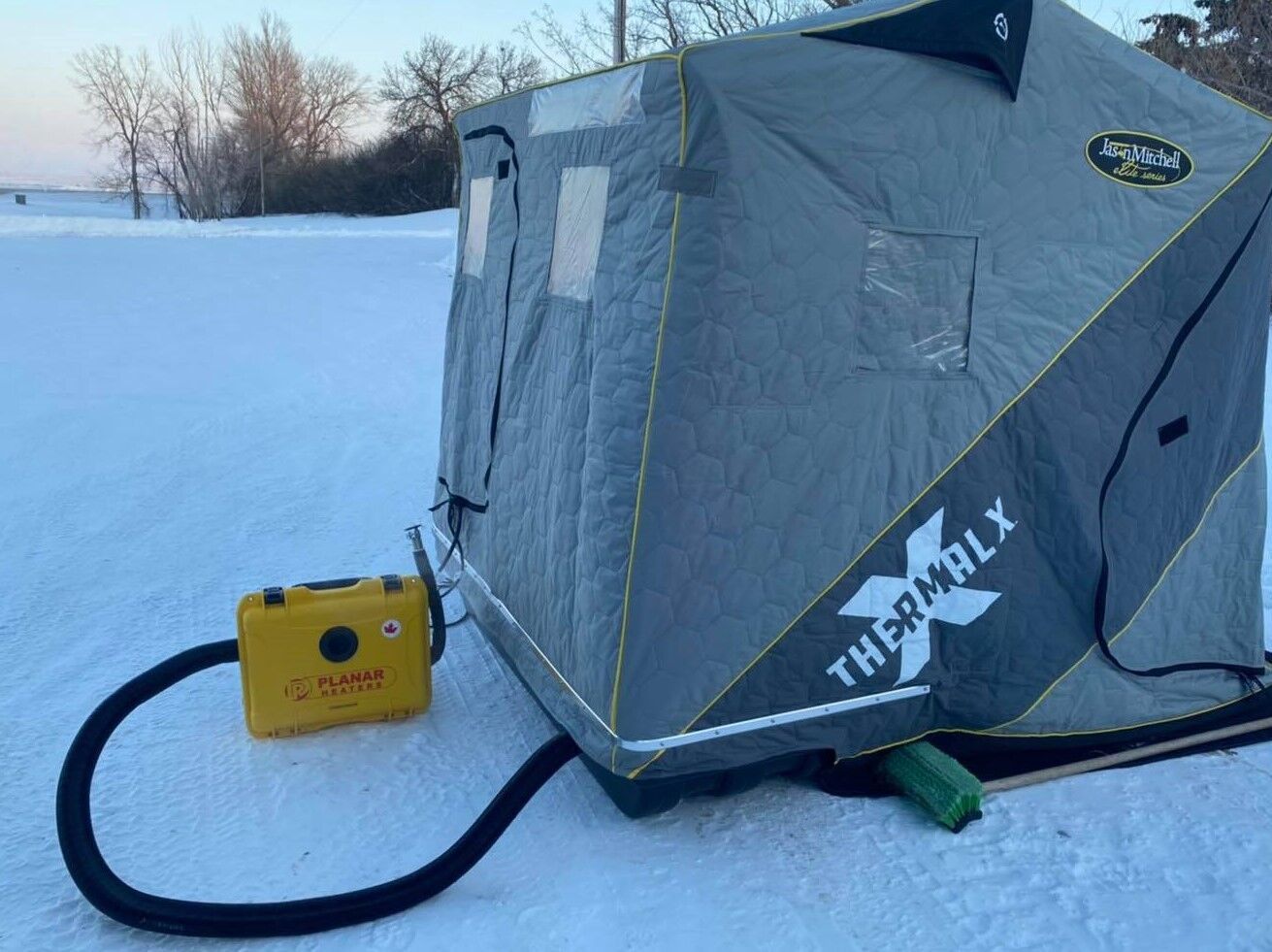

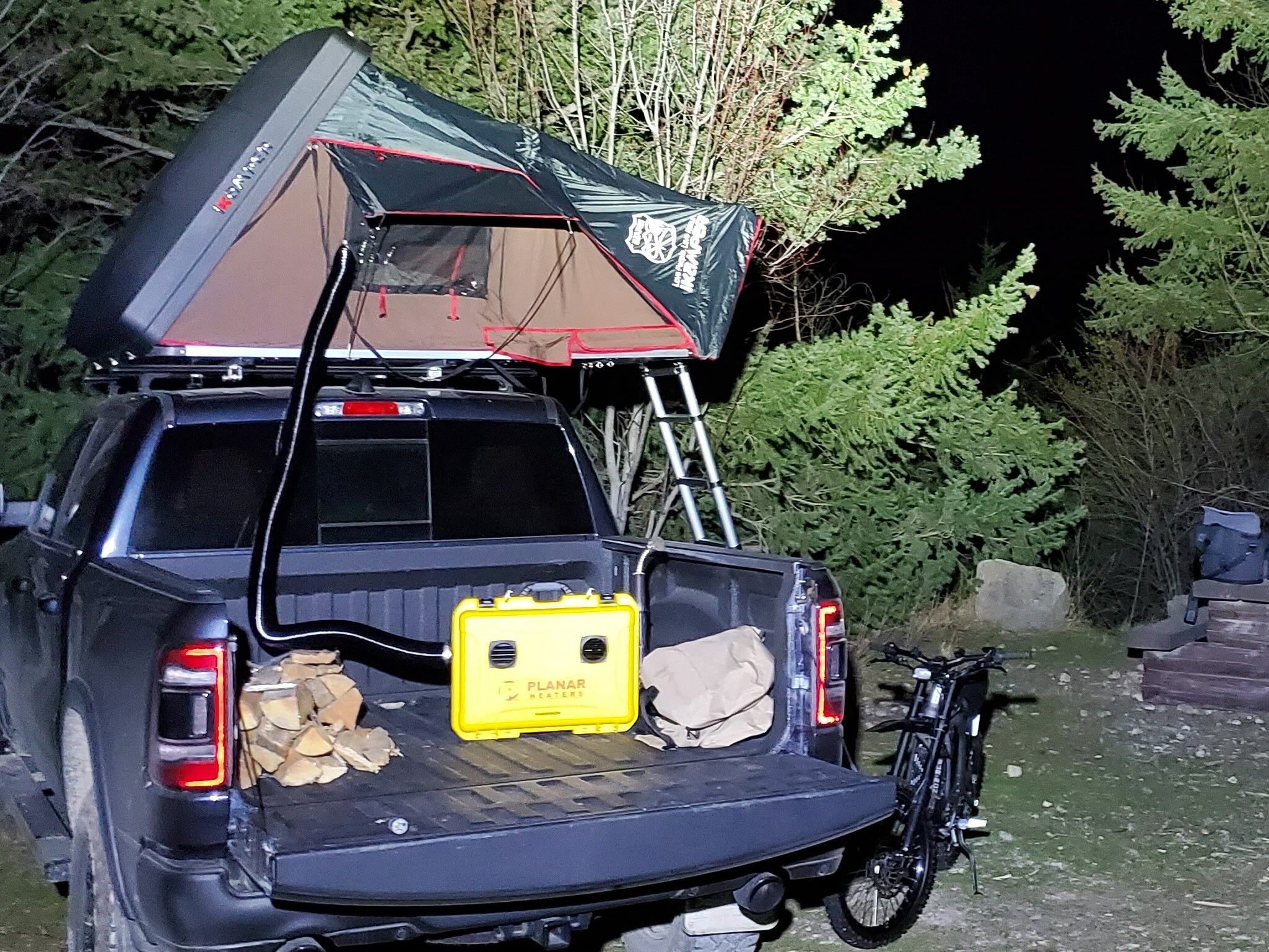

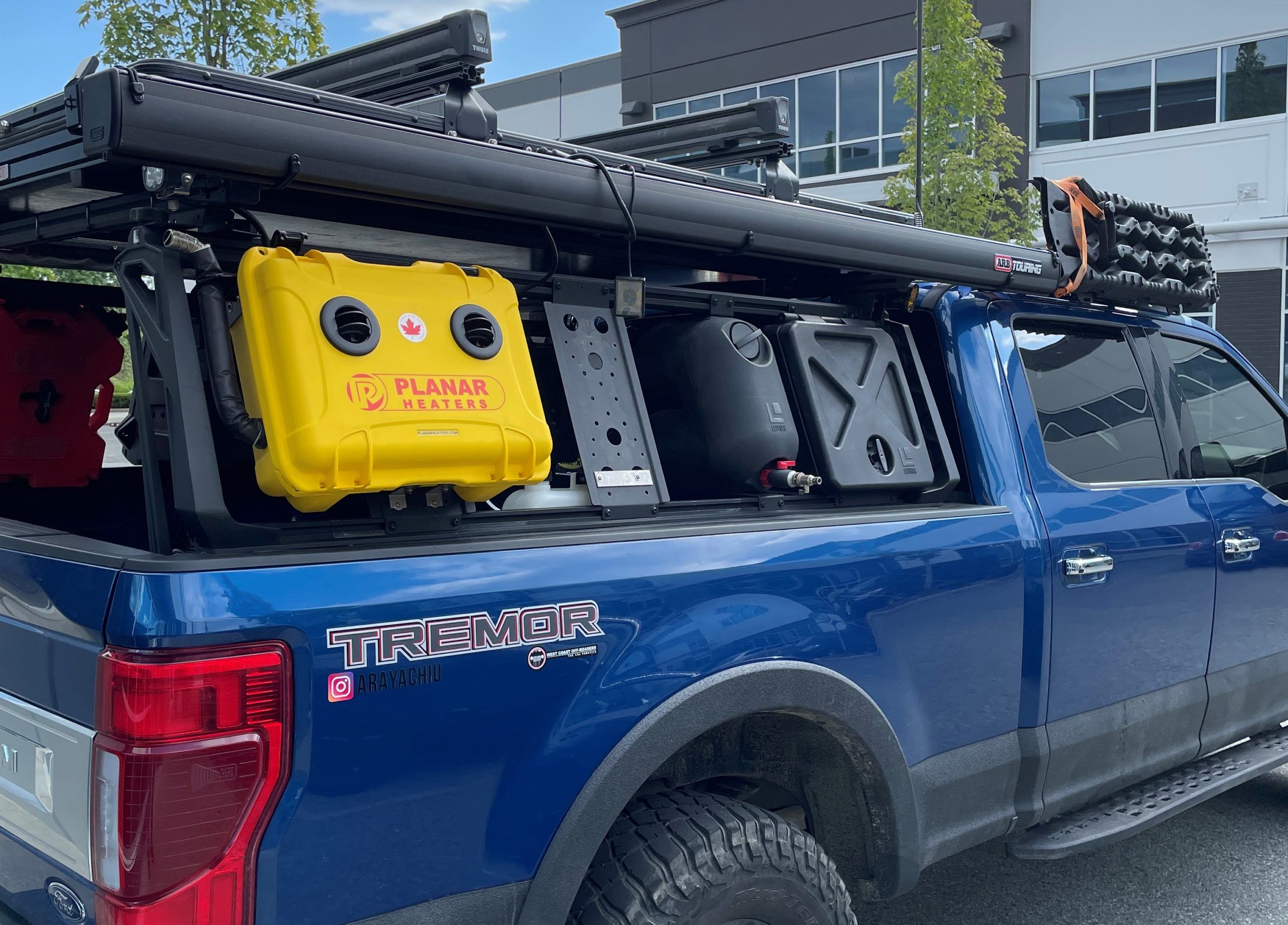

For heating campers, vans, camp tents, motorhomes, ice-fishing huts, and up to 30 ft. boats.
Take it with you when you go winter camping, hunting, and ice fishing. Anywhere you need instant dry heat!

* Refer to Operation Manual for operating procedures and safety precautions.

Download Portable Diesel Air Heater Planar 4D – 12V brochure


Technical details:

Heat Output: 1.0 – 4.0 kw / 3,400-13,600 btu
Fuel Consumption: 0.12-0.51 l/h / 0.03-0.14 gal/h
Nominal Supply Voltage: 12V
Power Consumption; W (A): 10-57 w (0.8-4.75 A)
Airflow Rate: 70-168 m³/h
Weight: 15 kg. / 33 lb.
Package L x D x H: 635 x 483 x 483 mm. / 25 x 19 x 19 in
Operating Modes: Power

Additional Parts:

PDH3-001 high temperature air hose, 3 in.

PDH3-001 for Portable Diesel Heater


PDH3-006 high temperature Y-connector, 3 in.

Planar PDH3-001 For Portable Diesel Heater | Planar Marine & Truck Air Heaters


Additional information

Weight 25 kg
Dimensions 70 × 67 × 67 cm
High Temp. Heat Ducting*

5 Feet, 10 Feet

Manual and Certificates

Operation Manual (English)

Download Installation Manual Planar-EN-v06.2021

Download Repair Manual Planar-EN-v11.2017

Download Spare Parts and BOM Planar 44D-EN v10.2021

Operation Manual for Control Panel PU-5

Mode d’emploi (Français)

Télécharger Manuel de reparation Planar-FR-v11.2017

Télécharger Manual Planar-FR-v06.2021

Panneau de commande PU-5 Manuel d’utilisation


Download Planar 44D_R10 Certificate

Download PV_R122_ADVERS_PLANAR-44D_18-03936

Certificats (Français)

Télécharger FR-11148-02
