$2,745.00
5-year manufacturer’s warranty
The safest technology, without risk of fire or explosion Long service life
Constantly improving storage capacity High stability even under extreme loads
No memory effect, no need for a full charge and discharge cycles High performance even under extreme conditions
Deep and regular discharge and charging efficiency Small size and lightweight

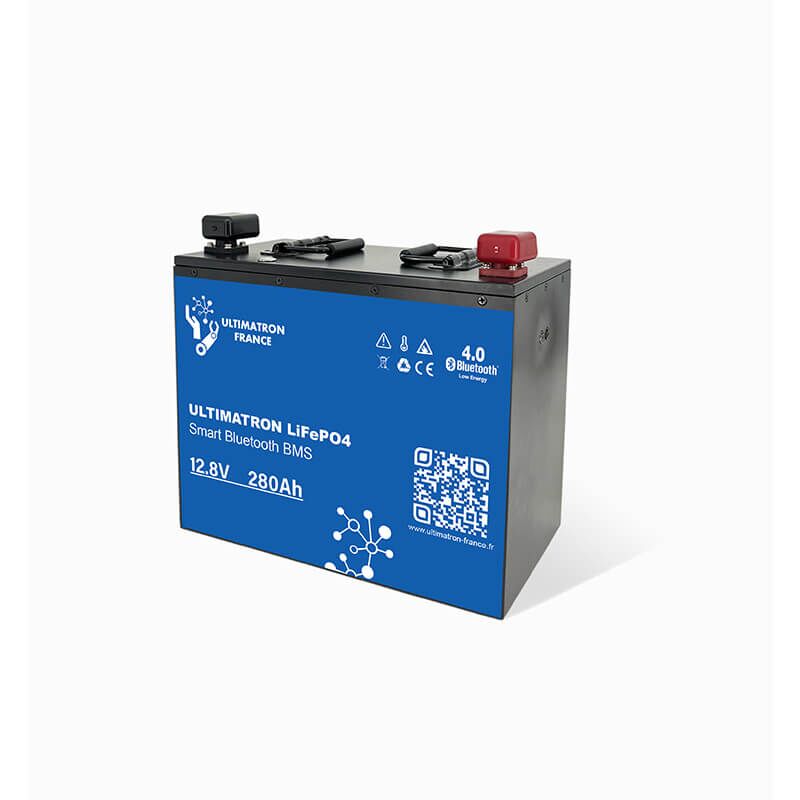

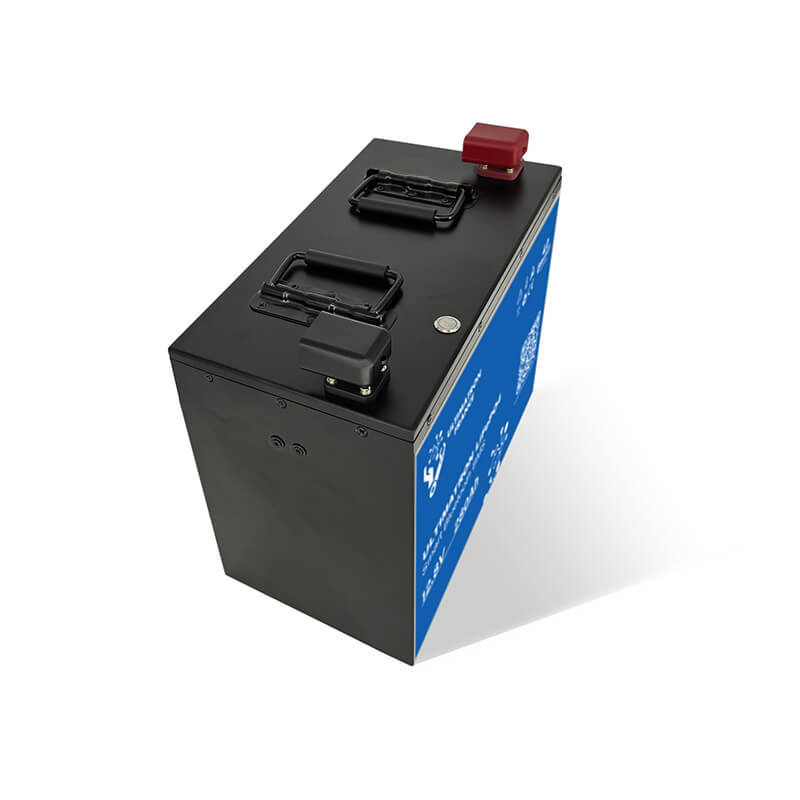

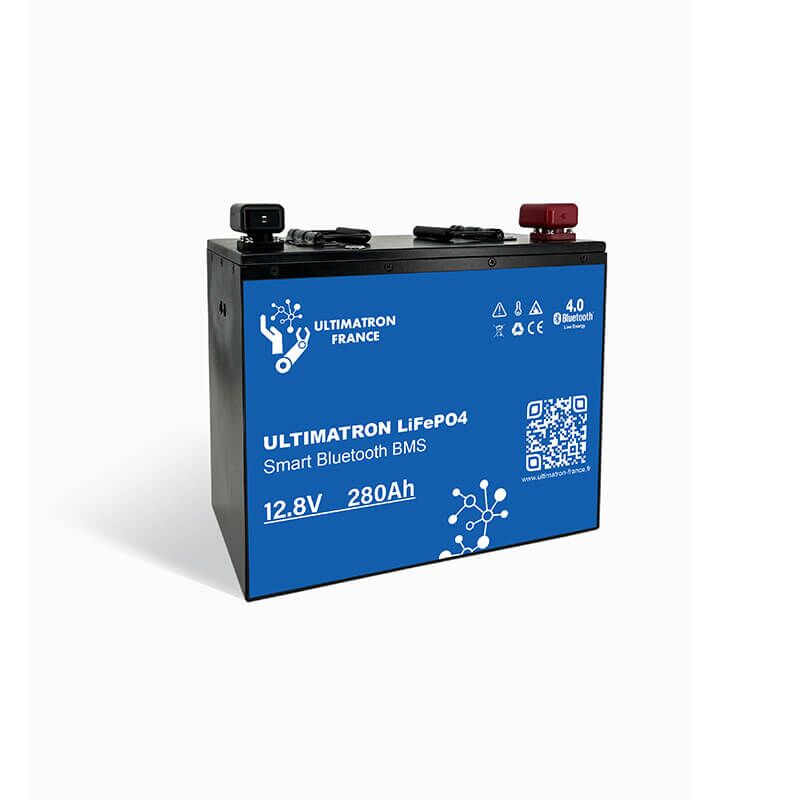

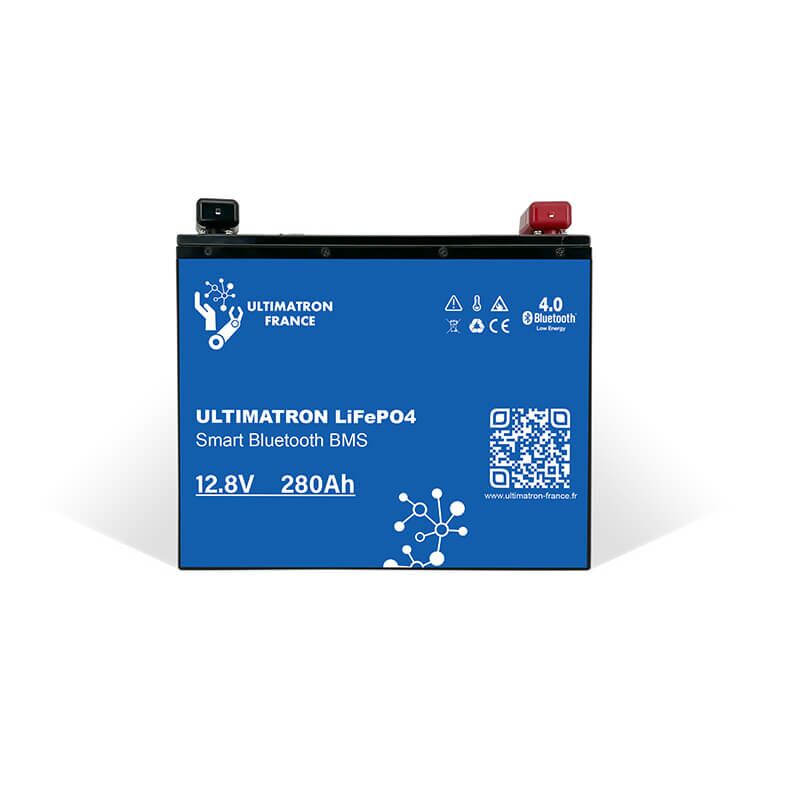

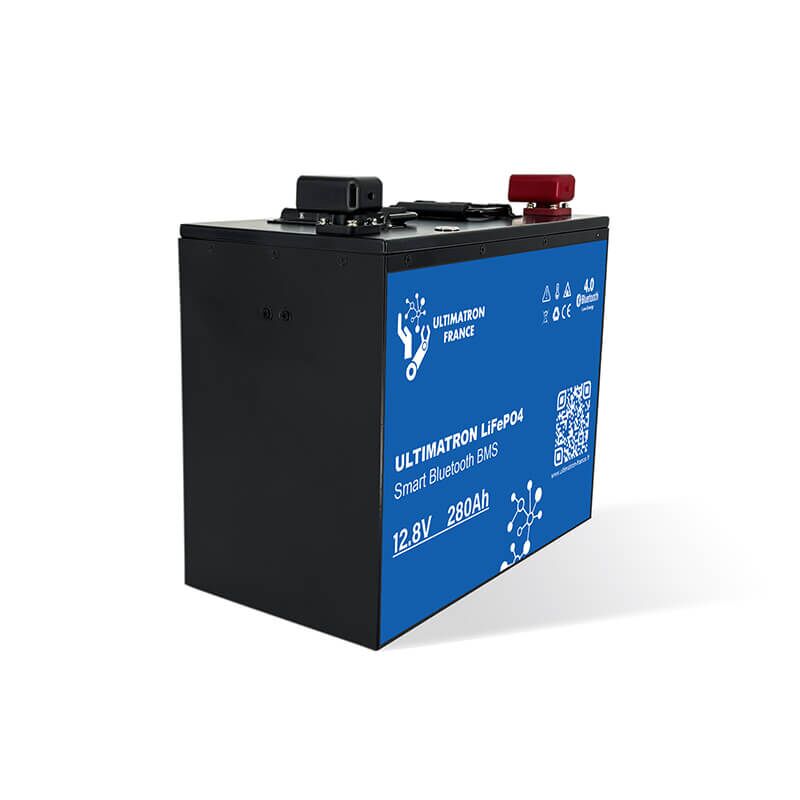

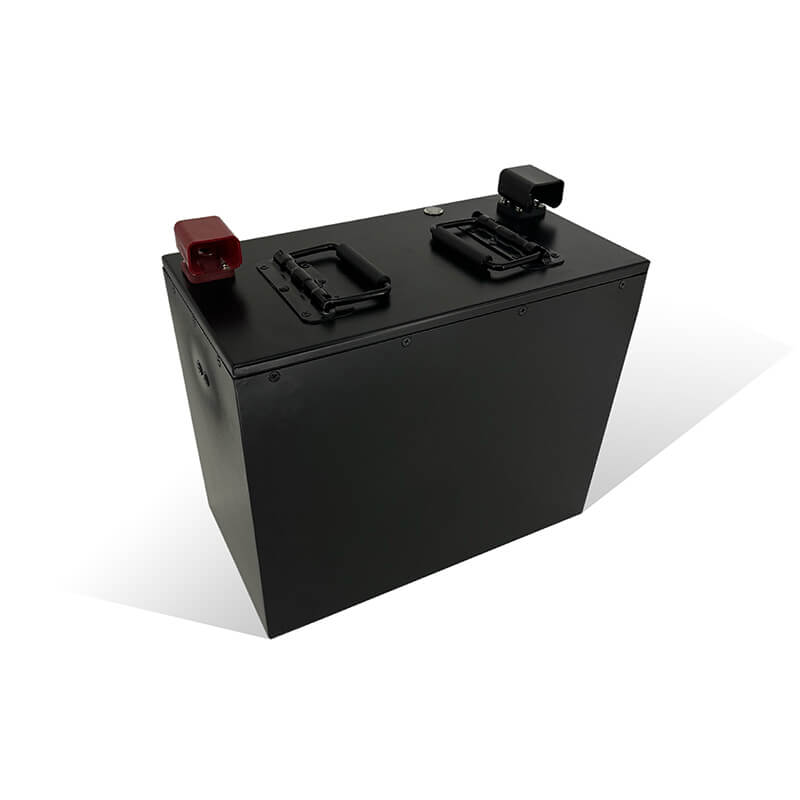

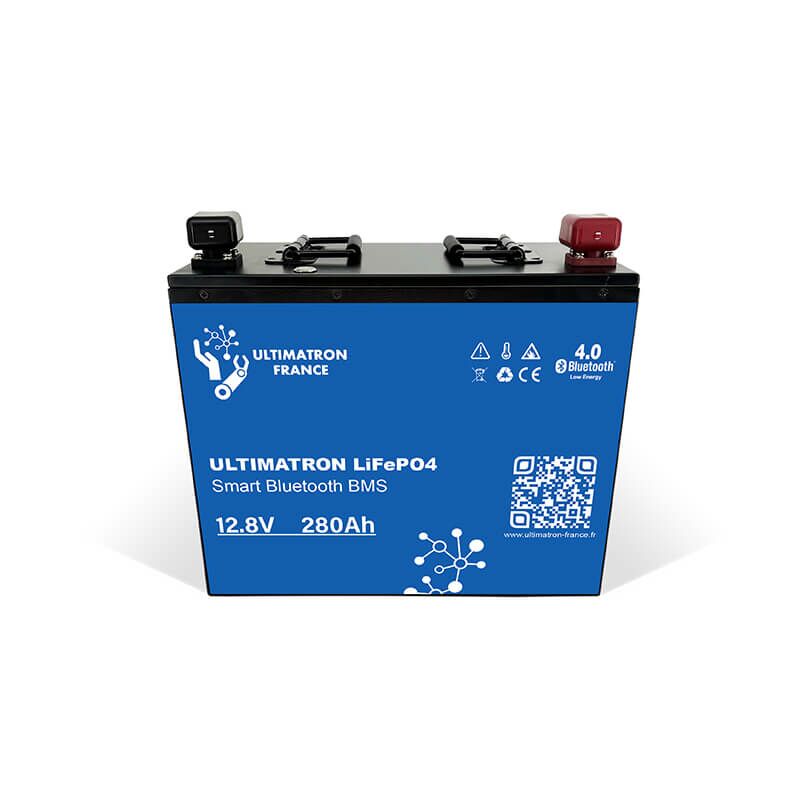

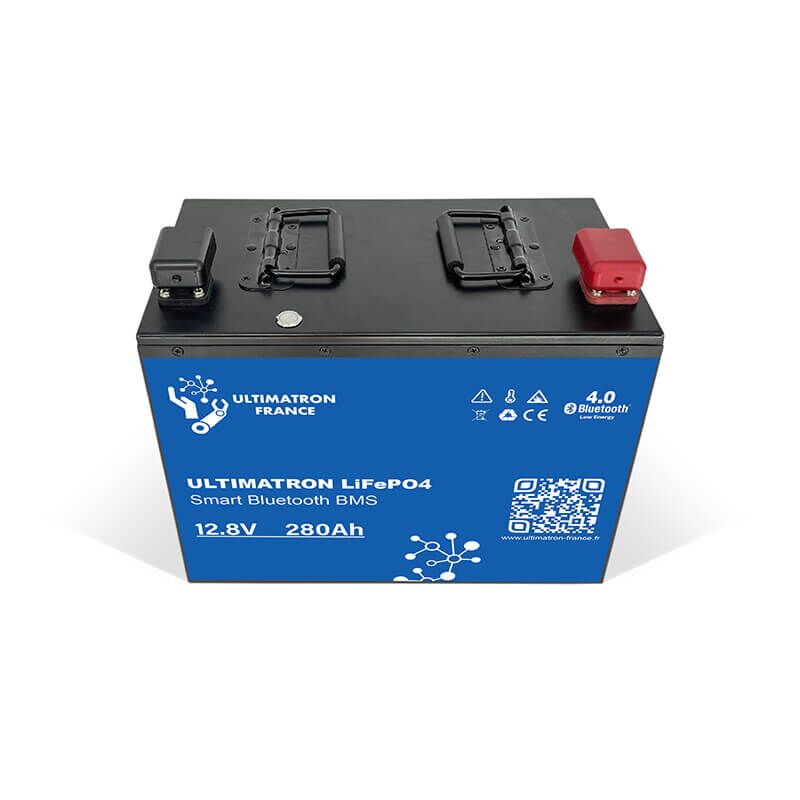

| Model | BMS-12.8V-280Ah |
|---|---|
| Nominal Capacity | 280Ah |
| Operating Voltage Range | 10-14.6V |
| Nominal Voltage | 12.8V |
| Number of Cycles | ≥3000 at 80% DoD |
| Charging Characteristics | CCCV / IU |
| Charging Voltage | 14.6V |
| Recommended Charge Current | 50A |
| Maximum Charge Current | 40A |
| Maximum Discharge Current | 200A |
| Peak Discharge Cut-Off Current (5~25 ms) |
220A (15 ~25 S) – 620A (320 ~1280m S) |
| BMS (Battery Management System) | Integrated |
| Monitoring | Bluetooth 4.0 with a smartphone app |
| Application/Interconnection | Parallel connection and serial connection with Max. 4 batteries for 12V, 24V, 48V applications |
| Protection | IP65 |
| Temperature Range (Discharge) | -20 ~ 65°C |
| Temperature Range (Charge)* | -20 ~ 55°C |
| Temperature Range (Storage) | -5 ~ 35°C |
| Low Temperature Heating | <0°C charging and heating |
| Terminal Stud | M8 |
| Warranty | 5-year manufacturer’s warranty |
| Weight | 31 kg |
|---|---|
| Dimensions | 35.56 × 33.02 × 19.05 cm |
To allow the control and the charge of the different elements of an accumulator battery and to protect it against overcharging, overvoltages and overheating.

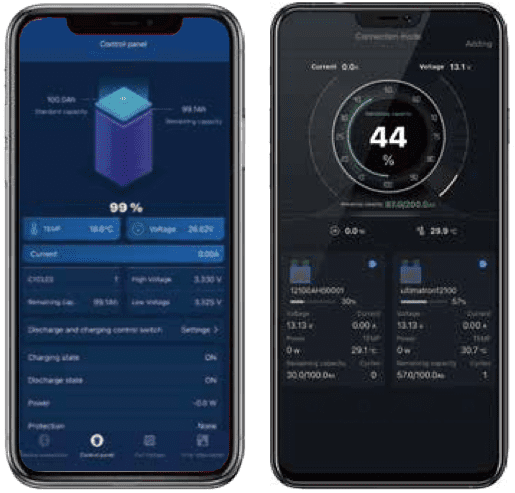

You have all important battery data always on your smartphone or tablet. The application displays the data in real-time.
